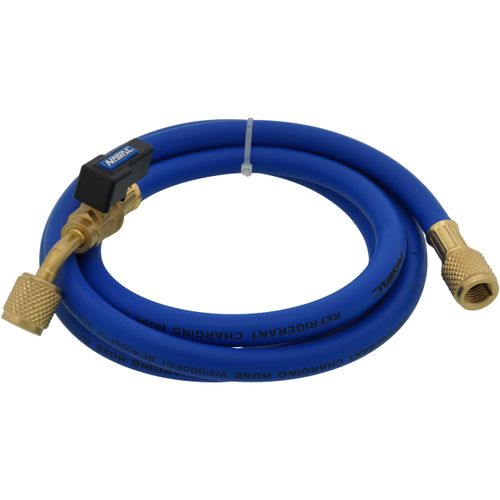

1/4" 45° Refrigerant Charging Hose w/Ball Valve - Blue (5')

The NH5CB is a rugged 1/4" charging hose designed for professional HVAC/R service. At 5 ft long and color-coded in blue for easy identification, it features a ball valve and angled fitting to deliver precise flow control, secure connections, and reduced refrigerant loss during charging and service tasks.

This product is a 1/4" 45° Refrigerant Charging Hose w/Ball Valve - Blue (5') manufactured by NAVAC.

• 1 × NH5CB refrigerant charging hose, 5 ft (60 in), blue

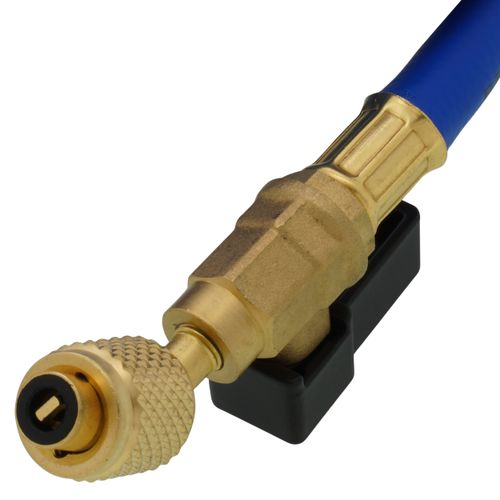

• Integrated ball valve for precise control

• 1/4" SAE hose with angled 45° fitting for tight service access
• Ball valve minimizes leaks and improves control during charging

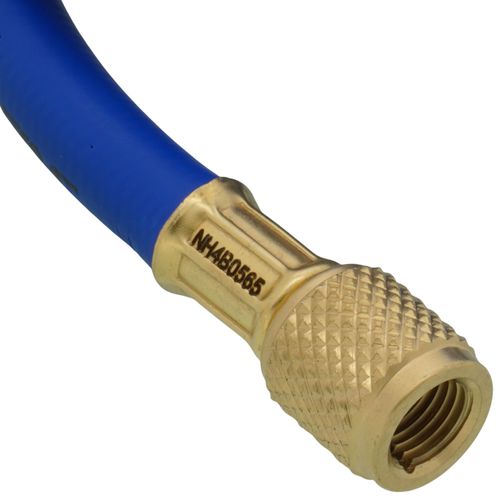

• Eight-sided crimp provides secure, leak-resistant connections
• Replaceable gasket extends hose service life
• Durable handle designed for repeated field use
• Color-coded blue for low-side identification

• Connection Size: 1/4" SAE
• Length: 5 ft (60 in)
• Angle: 45°
• Pressure Rating: 800 psi working / 4000 psi burst
• Compatible Refrigerants: R-410A, R-134a, R-22, and others

• Professional-grade hose engineered for durability and precision
• Blue color coding simplifies identification during manifold setup
• Built to handle repeated use in demanding HVAC/R service environments
