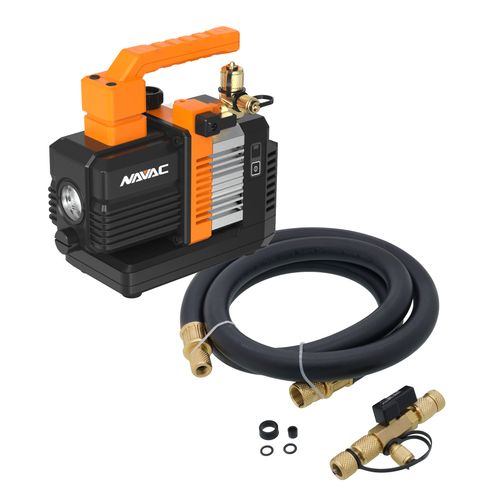

Cordless Vacuum Pump, No Battery, BreakFree Series (2 CFM) & Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (1/2" to 1/4" Fitting)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Package Includes:
(1) NP2D: Cordless Vacuum Pump, No Battery, BreakFree Series (2 CFM)Compact and portable, the NP2D provides 2 CFM performance in a cordless form factor to make light HVAC/R evacuation work simpler in tight spaces and on service calls. This version ships tool-only (no battery).
What's in the Box- 1 x NP2D cordless vacuum pump (no battery)
- Cordless mobility for flexible setup
- 2 CFM performance for light residential/service tasks
- BreakFree Series design focused on portability
- Lightweight, grab-and-go design speeds everyday evacuation work without compromising reliability.
- Navac NBF2 Lithium Battery
- Navac NP4D Cordless Vacuum Pump - 4 CFM
- Navac NP6DLM Cordless Vacuum Pump - 6 CFM
The NAVAC BreakFree Cordless Vacuum Pumps are a technician's favorite, offering unmatched portability, reliability, and performance for HVAC professionals. Now available in a pump-only form for even greater flexibility, they are compatible with DEWALT batteries using the included adapter for maximum convenience, while NAVAC batteries deliver optimal performance. Lightweight and compact, these brushless DC pumps are efficient, easy to carry, and store. With dual-stage technology, they achieve impressive vacuum performance: 2 CFM/23 microns (*NP2D), 4 CFM/15 microns (NP4D), and 6 CFM/15 microns (NP6D). Additional features such as a backflow prevention check valve, isolation valve, lifting hook, and A2L refrigerant compatibility make the BreakFree series the ultimate solution for modern HVAC needs.
*Not included in NP2D
- Power Supply: 18V, 5Ah
- Flow Rate: 2 CFM
- Ultimate Vacuum: 23 micron
- Pump Design: Dual-Stage, DC Motor
- Motor Power: 1/6 HP
- Inlet Port: 1/4" , 3/8" Flare
- Oil Capacity: 5.4 oz
- Dimension: 7.7 x 3.5 x 7.6 in
- Weight: 7 lbs (no battery)
- Warranty: 2 Years
(1) NEVK2: Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (1/2" to 1/4" Fitting)
Kit designed to accelerate evacuation with a valve core removal tool and hose assembly sized for 1/2" to 1/4" transitions.
Navac's NEVK2 Pro Series Rapid Evacuation Kit features the NVR1 Valve Core Removal Tool and the NHB2 Big Boy High-flow 6' Long Evacuation Hose.
Product Features:- NVR1 Valve Core Removal Tool:
- For use with both 1/4" and 5/16" flare fitting
- Designed for high-pressure refrigerants including R410a
- Metal handle for durability
- Vacuum rated to 20 microns
- NHB2 Big Boy High-flow 6' Long Evacuation Hose, 1/2" to 1/4" Fitting:
- 1/2" large diameter for fast evacuation
- 3200 psi burst pressure, 640 psi working pressure
- 4-layer construction for low permeation
- Vacuum rated to 20 microns
- Valve core removal tool
- Evacuation hose (1/2" to 1/4" fittings)
- Speeds system pull-downs
- Durable, pro-grade components
- NVR1 Valve Core Removal Tool:
Specs
| Air Flow Capacity (CFM): | 2 |
|---|---|
| Product Type: | Evacuation Hose Vacuum Pump Removal Tool Evacuation Kit |
| Stages: | 2 |
| Oil Capacity (fl. oz.): | 5.4 |
| Inlet Size: | 3/8" 1/4" |
| Ultimate Vacuum: | 23 microns |
| Inlet Type: | Flare |
