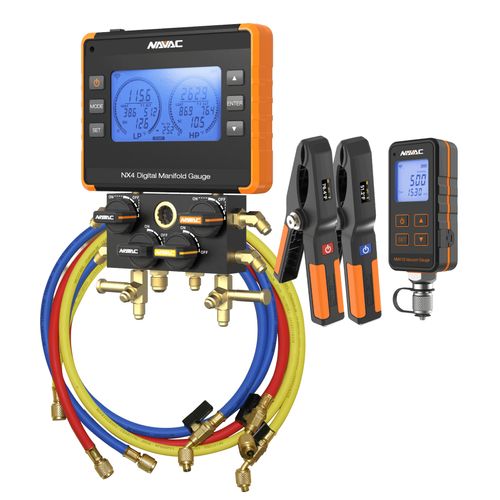

NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth-Enabled & 1/4" 45-Degree Charging Refrigerant Hose Set (5')

The NX4V-NH5SC package includes the NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth-Enabled (NX4V) and the 1/4" 45 Charging Refrigerant Hose Set (5') (NH5SC).

Package Includes:

(1) NX4V: NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth-Enabled

Smart digital manifold kit designed for fast, precise diagnostics with integrated vacuum measurement and Bluetooth connectivity. The NX4V streamlines testing, recording, and verification in the field with app-assisted functionality.

The NAVAC NX4/NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen. Designed to meet diverse needs, it offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability, while the foldable hidden hook enhances portability. With Class 0.4 accuracy and a clear digital display, it delivers precise readings. Built to endure field challenges, its impact-resistant, rubber-covered construction guarantees reliable, long-term performance.

• Refrigerant Type: R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A,R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B,R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd, R-1234yf, R-1234ze *Maximum pressure: 1087psi(7500kPa)
• Ports: (1) 3/8" sae vacuum: (3) 1/4" sae for suction line liquid line, and refrigerant recovery/charging
• Maximum Manifold Pressure: 1087psi (7500kPa)
• Power Supply: Rechargeable 3000mAh lithium battery For the best charging experience, please use the provided cable, or USB-A to USB-C cables.
• Accessory: NX4V: NMV1S Micron Gauge in addition to the NX4 Kit
• Warranty: 2 years

What's in the Box

• 1 × NX4V digital manifold (kit)
• Vacuum gauge (integrated or included per kit)

Key Benefits & Features

• Bluetooth-enabled for mobile app integration and documentation
• Integrated vacuum gauge for evacuation monitoring
• Digital precision for charge, pressure, and diagnostic workflows
• Compact, rugged design for field conditions

Why NX4V Stands Out

• Combines manifold and vacuum measurement in one unit
• App compatibility for modern, paperless service workflows
• Professional accuracy with streamlined operation

Related Products

• Navac N2DX FLEX-X Digital Manifold Gauge
• Navac NRS2A Smart Refrigerant Scale (220 lb Capacity)
• Navac NMG13A Pro Series Manifold Gauge

(1) NH5SC: 1/4" 45 Charging Refrigerant Hose Set (5')

• Suitable for R410A, R134a, R-22 and other refrigerants
• 1/4" SAE fittings with 45 bend on one end
• Leak-proof eight-sided crimp
• 800 psi working pressure, 4000 psi burst pressure
• Metal valve handle
• Universal, replaceable gasket
• Ball valve to prevent refrigerant loss
• Color: Red, Yellow, Blue
• Quantity: 3 hoses
• Ball Valve: Yes
• Pressure Scale: 800 psi
• Length: 5 ft
• Connector: 1/4"-1/4"
• Warranty: 1 year
