8kW Pre-Assembled Modulating Electric Boiler
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (3)
Schematic Feature!
Replacement Parts
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
27304 Max BTUs
Electric
2 Year Limited Warranty
240v
30 MAX PSI
7 PSI
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

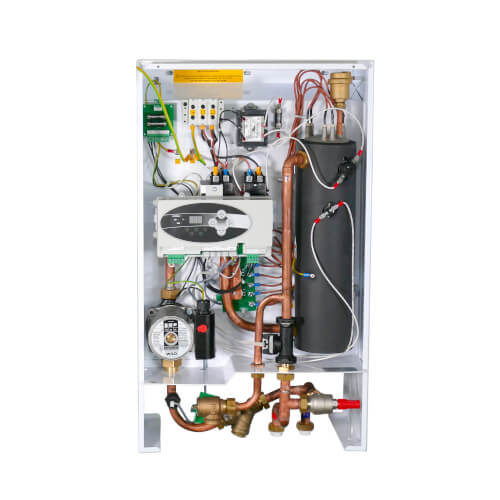

The NextGen Boiler is a three element modulating electric boiler that allows for consistent, professional installation for radiant heating applications. Take the complexity out of the mechanical room and replace it with peace of mind for the homeowner. All boiler parts and pieces (expansion tank, circulating pump, air vent, safety relief valve, and heat exchanger) are housed within the unit, for an aesthetically pleasing appearance.
Features:
- Boiler Rated Power: 8kW (27,304 BTU/Hour)
- Voltage: 240V
- Rated Current: 33.3A
- Breaker Quantity - Amps: 1@ 50 amp
- Number of Heating Elements: 3
- Element Resistance: 21.6 alms ea
- Operating Temperature Range: 85F -140F
- Weight: 68.5lbs
- Dimensions: 28" x 17" x 9-7/8"
- One attractive plug-and-play system
- Installs in less than half the time
- 2 Year Limited Warranty
- UL Listed
- Modulated three staged heating
- Outdoor compensation/reset
- Off-peak capability
- Redundant safety controls
Specs
–
| Fuel Type: | Electric |
|---|---|
| Voltage: | 240v |
| BTU Output: | 27304 |
| Kilowatts (KW): | 8 |
| Max Pressure (PSI): | 30 |
| Min Pressure (PSI): | 7 |
| Min Flow (GPM): | 1.32 |
| Warranty: | 2 Year Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator
8kW Pre-Assembled Modulating Electric Boiler
Replacement Parts
SKU: NG008
Brand: NextGen Boiler
Search Parts:
SEARCH PARTS
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: What fitting do I need to connect the water lines to this unut
Asked by Bo 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Bo, thanks for writing in. The inlet/outlet connections are internal 3/4" NPT threads for this unit.
