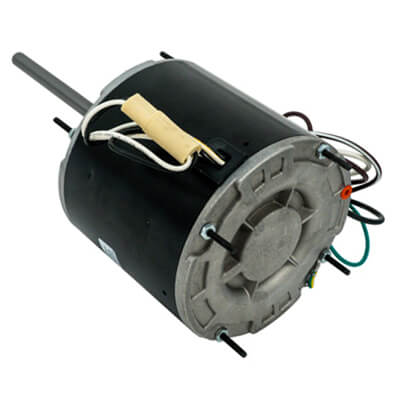

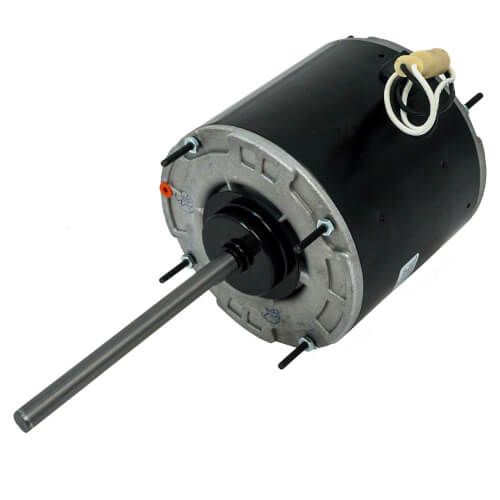

1-Speed, 5-5/8" High Temp. Condenser Fan Motor (1/4 HP, 825 RPM, 208-230 V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$207.24 each
Backorder
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
1/4 HP
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
Features
Features
- Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and tapped holes in the shell for Rheem mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36” Leads
- Energy Efficient PSC Design
- H.P. 1/4
- Amps 1.3-1.4
- RPM 825
- Bearings Ball
- Shaft Dimension (In.) 1/2 x 6-1/2
- Length Less Shaft (In.) 4-5/8
- Voltage 208 - 230
- Capacitor Required 5MFD/370V
Specs
–
| RPM: | 825 |
|---|---|
| Voltage: | 208/230V |
| Horse Power: | 1/4 |
