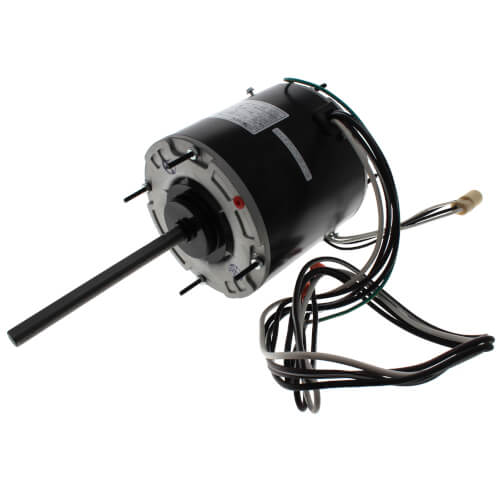

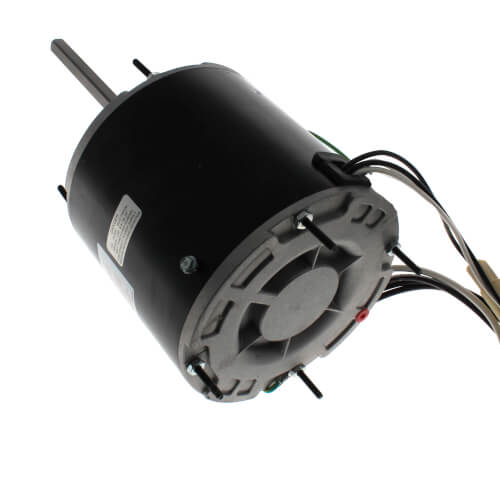

5-5/8" High Temp. Condenser Fan Motor, 1075 RPM, 3/4 HP (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
43735F has been discontinued
Discontinued September 1, 2023
This product was discontinued by the manufacturer.
This item replaces: D931
Product Highlights
–
208/230V
1075 RPM
3/4 HP
5.1 Amps
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features:
Class F Insulation
70°C Ambient
Ball Bearing
Single Speed
Drilled and tapped holes in the
shell for Rheem mounting
Reversible
All Angle Mounting
Extended Thru Bolts
36" Leads
Energy Efficient PSC
Design
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features:
Specs
–
| Horse Power: | 3/4 |
|---|---|
| Speeds: | 1 |
| Voltage: | 208/230V |
| Amperage: | 5.1 |
| RPM: | 1075 |
| Bearings: | Ball |
| Type: | Permanent Split Capacitor |
| Shaft Length: | 6.5" |
| Lead Wire Length: | 36" |
