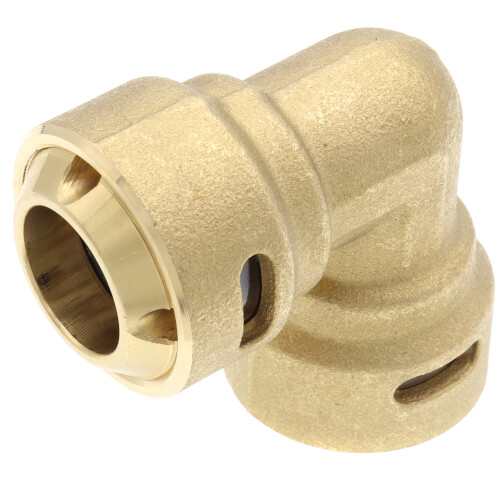

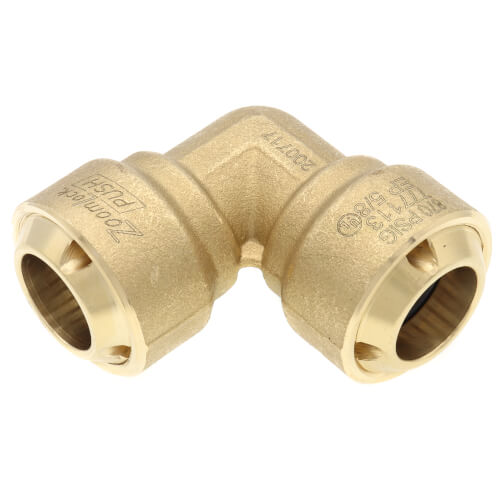

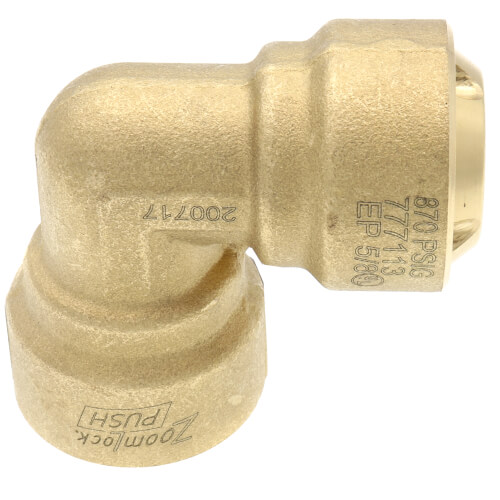

5/8" ZoomLock PUSH R410A Optimized 90-Degree Elbow (PZKP-90E10-HNBR)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$27.76 each
BOX UP & SAVE 5%
$262.70 box of 10
$26.27 each
In Stock
Get 9 Wed, Jul 8
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
R-410A
5/8" Connection
Copper
300°F Max Temp
-40°F Min Temp
R410A
Description
–
HVACR pros know that time is money. ZoomLock PUSH push-to-connect refrigerant fittings eliminate brazing, flames, fire spotters, or risks from installing traditional HVACR fittings. ZoomLock PUSH offers a way for contractors to connect refrigerant lines in seconds, boosting efficiency while providing the safety and reliability you expect from Parker. ZoomLock PUSH is ideal for Residential AC, HP, Mini-split and Refrigeration installations.
Features:
Specifications:
Features:
- No press tool or jaws needed
- Fast and easy install
- Cleaner system installs
- Secure, leak-free connections
- Safer conditions, no fire hazards
- No hot-work permits
- No need to nitrogen-purge
- Flexible access to job sites
Specifications:
- Connection Size: 5/8"
- R410A Optimized
- Applications: High Pressure HVAC/R
- Continuous Operating Temperature: 250°F / 121°C
- O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
- Maximum Rated Pressure (MRP): 700 psi / 48 bar
- Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
- Vacuum Pressure Capability: 500 Microns
- External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
- Vibration Resistance: Conforms to UL109
- Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
- O-Ring: HNBR
- UL Listed SA7511 Approved use for field and factory installations
- ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
Specs
–
| Refrigerant Type: | R-410A |
|---|---|
| Connection Size: | 5/8" |
| Material: | Copper |
| Max Temp (F): | 300°F |
| Min Temp (F): | -40°F |
| Used With: | R410A |
