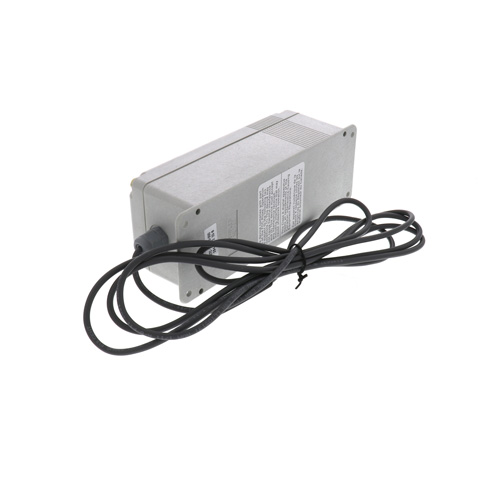

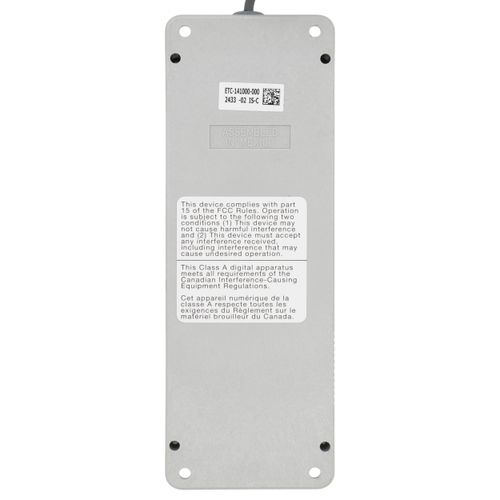

Single Stage ETC Temperature Control w/ Sensor (120/240V Input, Plastic Enclosure)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$181.33 each
In Stock
Get 37 Tue, Dec 10
More Available
Order by 6PM, receive Tuesday
MANUALS (2)
This item replaces: ETC-141000
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v, 208v, 240v
1° to 30°F
SPDT
7.84"
2.48" Depth
1 HP
Description
–
Digital Display
Remote Temperature Sensing
Built-In Safety
- Unlike many electronic controls, the ETC is simple to install and set up. One finger is all you need to program it. The standard digital display and keypad allow the user to adjust the temperature settings with 1 degree resolution. Setpoint temperature, differential and mode of operation (heating or cooling) can all be selected using the keypad and display.
When not in the programming mode, the display gives a constant readout of the sensor temperature. Annunciators on the liquid crystal display also indicate when the relay is energized.
Remote Temperature Sensing
- The ETC is capable of remote temperature sensing up to 400 feet away from the control when using standard 22 gauge sensor wire.
Built-In Safety
- Every ETC model is equipped with diagnostic programs that check for hardware, software, or system problems and display different error codes to indicate where the trouble is.
The ETC also has a keyword lockout switch to prevent tampering with the control settings by unauthorized personnel. The switch, which is located inside the enclosure, can be used to disable the keypad function.
Specs
–
| Capillary Length: | 8' |
|---|---|
| Application: | Remote Bulb Temperature |
| Temperature Range: | -30° to 220°F |
| Differential: | 1° to 30°F |
| Voltage: | 120v 208v 240v |
| Sensor Type: | Thermistor |
| Bulb Size: | 2" x 1/4" |
| Operating Temp Range: | -20° to 140°F |
| Enclosure Type: | NEMA 4 |
| Height: | 7.84" |
| Width: | 2.7" |
| Depth: | 2.48" |
| Switch Action: | SPDT |
| Contact Ratings 120v: | 96.0 ALR 16.0 AFL |
| Contact Ratings 240v: | 48.0 ALR 8.0 AFL |
| Humidity Range: | 0 to 95% RH (Non Condensing) |
| Resistive: | 15 A 8 A |
| Horse Power: | 1 |
| Pilot Duty Rating: | 125 VA |
| Stages: | One |
