Description

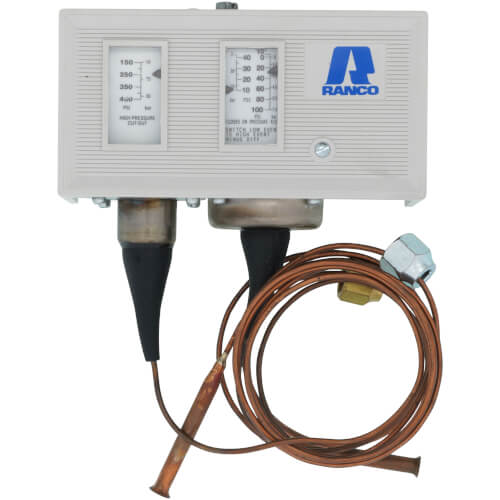

These controls offer a tailored variety of ranges and options for R12, R22, and R502 refrigerants. Low and high pressure functions are combined into a single control with one switch

Features
  • Exclusive "convertible" reset for manual or automatic high pressure reset on some models
  • NEMA 1 enclosure with non-conductive cover
  • Front-located captive cover screw
  • Large, easy-to-read scale plate
  • SUPER CAP® capillary protection system
  • Universal mounting and compact design
  • Color coded flare nuts
Hide Description
Specs
Cut-In PSI:

10" to 100 PSI

Cut-Out PSI:

150 to 450 PSI

Switch Action:

SPST

Reset Type:

Manual

Low Pressure Differential:

10 to 40 PSI

High Pressure Differential:

70 Fixed

Capillary Length:

48"

Product Type:

Dual Pressure

Pressure Range:

10" to 100 psi

Max Pressure (PSI):

450

Pressure Range:

150 to 450 psi

Min Pressure (PSI):

150

Connection Type:

1/4" SAE flare nut

×
