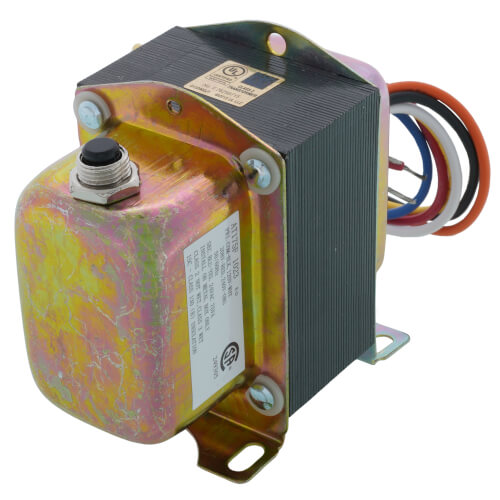

Plate or Panel Mounted 120/208/240 Vac Transformer with 9 in. Lead Wires and Metal End Bells, AT175F1023
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$98.74 each
In Stock
Order by today, receive Tuesday
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Panel
-20°F - 105°F
3-3/16"
3-5/8" Depth
Description
–
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Specifications
Features
Specifications
- Description: Plate or planel mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
- Electrical Ratings: 120 Vac, 208 Vac, 240 Vac
- Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
- Frequency: 60 Hz
- Mounting: Includes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in. knockout, and feet for surface mount.
- Electrical Connections (Primary)(in): 9 in. leadwires
- Electrical Connections (Secondary)(in.): 9 in. leadwires
- Electrical Ratings -Output: 24 Vac at 50 VA
- Dimensions: 3-3/16 in. high x 2-3/16 in. wide x 3-5/8 in. deep
- Temperature Ratings: -20 F to +105 F
- Includes: Button for manually resetting the circuit breaker and metal end bells.
Features
- Rated at 75 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 240V 208V 120V |
| Voltage (Secondary): | 27.5 V.O.C. |
| Mount: | Plate Panel |
| VA Rating: | 75 |
| Hertz: | 60 |
| Electrical Output: | 24 Vac at 75 VA |
| Temperature Range (F): | -20°F - 105°F |
| NEMA Rating: | None |
| Height: | 3-3/16" |
| Width: | 2-3/16" |
| Depth (Inches): | 3-5/8" |
| Wiring: | 9" leadwires |
| Features: | Metal End Bells |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.83 out of 6 reviews
100% would recommend this product
5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
Works as expected
The last Honeywell 70va transformer blew it's internal fuse when I accidentally shorted while replacing a thermostat without shutting off the power. They designed it so that it's extremely difficult to get at the first to replace. Love that this version has a resettable breaker
Rick
Cape Cod, MA
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Exactly what I wanted and no issues.
All good, works like it was spouse to.
KevinO
Wildwood, NJ
7 years ago
Verified Buyer
Was this review helpful to you?
Great item and service!!!
Use them on boilers and control systems!!!!
Kdc
PA
8 years ago
Verified Buyer
Was this review helpful to you?
Solid product - Instructions are lacking
The product is solid but instructions are lacking. Would not recommend for the novice do it yourself-er. I used this to replace the transformers for a 4 TACO Valve Zoned hot water system. It talks about a mounting plate but I couldn't find one online or at the hardware store. I ended up mounting through the side of the electrical box. This worked well and the wires are contained in the box per code with the threaded nipple acting as the ground to the metal box. Pay close attention to the instructions regarding the color of the wires, as it works with different voltages.
Matt
CT
9 years ago
Verified Buyer
Was this review helpful to you?
One part, covers multiple units
We use this in any control system requiring 24 vac control voltage on site. The multi-voltage line connection and compact size allows it to be utilized in many different brands of equipment regardless of brand (HVAC and Security alarm systems. The reset-able circuit breaker is handy when controls short circuit, keeping the transformer from being damaged. If space is at a premium in your stockroom or field truck (and we know it is), This is one item you want to have in it.
Al. S.
Northern NJ.
10 years ago
Verified Buyer
Was this review helpful to you?
Great product did exactly what it was su
easy install fast delivery did what it was supposed to
ELU
chicago,ill
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is the output of this transformer rated at 75 VA or 50 VA ? The specifications give 75 VA at one place, and 50 VA at another place. Which is it ?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe output of the transformer at a rating of 100 percent power factor is 75 VA. Please refer to the product specifications at http://s3.pexsupply.com/manuals/1282921700243/38382_PROD_FILE.pdf
