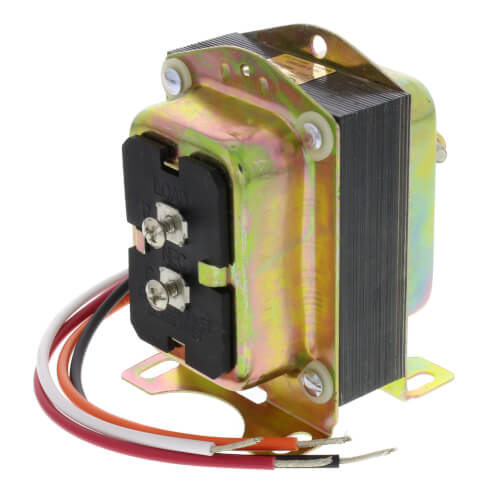

Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires (40VA), AT140A1018
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$31.21 each
In Stock
Get 156 Thu, Jul 2
Order by today, receive Thursday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Foot, Clamp
-20°F - 105°F
3-3/16"
3-1/8" Depth
Description
–
Metal end bells included
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Features
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Features
- Rated at 40 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
- Description: Foot mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
- Electrical Ratings -Primary Voltage: 120 Vac, 208 Vac, 240 Vac
- Electrical Ratings -Secondary Voltage: 27 V.O.C.
- Frequency: 60 Hz
- Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
- NEMA Rating: No
- Electrical Connections (Primary)(in.): 9 in. leadwires
- Electrical Connections (Primary)(mm): 229 mm leadwires
- Electrical Connections (Secondary)(in.): (2) screw terminals
- Electrical Connections (Secondary)(mm): (2) screw terminals
- Electrical Ratings -Output: 24 Vac at 40 VA
- Dimensions (in.): 3 3/16 in. high x 2 3/8 in. wide x 3 1/8 in. deep
- Dimensions (mm): 81 mm high x 60 mm wide x 79 mm deep
- Temperature Ratings (F): -20 F to +105 F
- Temperature Ratings (C): -29 C to +41 C
- Approvals, Underwriters Laboratories Inc UL Listed: A,C,F models. File # E14881
- Approvals, Canadian Standards Association CSA Certified: A & B models.
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 240V 208V 120V |
| Voltage (Secondary): | 27 V.O.C. |
| Width: | 2-3/8" |
| Height: | 3-3/16" |
| Depth (Inches): | 3-1/8" |
| Wiring: | 2 Screw Terminals |
| Electrical Output: | 24 Vac at 40 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 40 |
| Mount: | Plate Foot Clamp |
| Features: | Metal End Bells |
