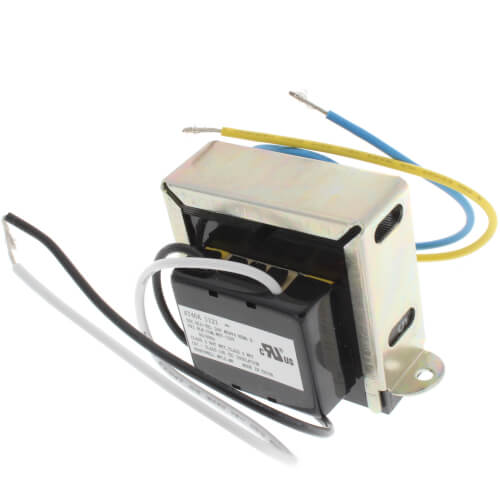

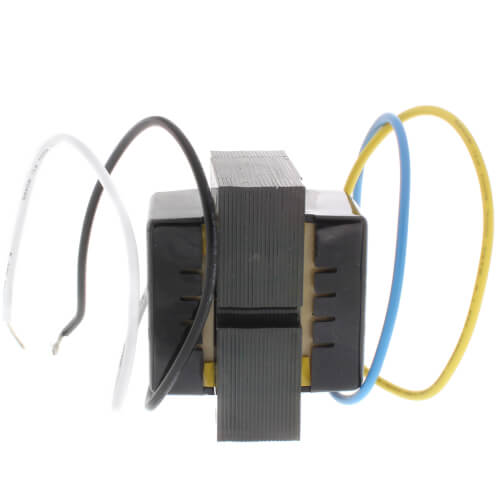

Foot Mounted 120 Vac Transformer with 9 in. Lead Wires (NEMA D Rating), AT40A1121
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$52.29 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Foot
-20°F - 105°F
2-3/32"
2-3/16" Depth
Description
–
Power a 24V control system; for direct mounting, or horizontal or vertical foot-mounting.
Features
Specifications
Features
- Color-coded leadwires for primary connections.
- Overload protection provided.
- Energy limiting, meet NEMA DC20-1992 Standard. Marked NEMA Type D.
- Meet NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
- Mount within proper enclosure.
Specifications
- Description: Foot mounted 120 Vac Transformer with 9 in. lead wires
- Electrical Ratings: 120 Vac
- Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
- Frequency: 60 Hz
- Frequency: 50 Hz
- Mounting: Channel Frame Mounting allows for Direct, Horizontal, or Vertical Foot mounting.
- NEMA Rating: NEMA type B
- Electrical Connections (Primary)(in): 9 in. color coded primary and secondary leadwires
- Electrical Connections (Secondary)(in.): 229 mm color coded primary and secondary leadwires
- Electrical Ratings -Output: 24 Vac at 19 VA
- Dimensions: 2 in. high x 2-1/4 in. wide x 1-7/8 in. deep
- Temperature Ratings: -20 F to +105 F
Specs
–
| Application: | 24v Controls |
|---|---|
| Mount: | Foot |
| Voltage (Primary): | 120V |
| Voltage (Secondary): | 26.5 V.O.C. |
| Hertz: | 50 60 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 40 |
| NEMA Rating: | Type D |
| Height: | 2-3/32" |
| Width: | 2-5/8" |
| Depth (Inches): | 2-3/16" |
| Wiring: | 9" leadwires |
| Electrical Output: | 24 Vac at 40 VA |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Mount
Voltage (Secondary)
VA Rating
CURRENT ITEM
Foot
26.5 V.O.C.
40
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Fast delivery and good product
Fast and good
Nico
Chicago
6 years ago
Verified Buyer
Was this review helpful to you?
Great Product
This is a great product
Jo
Tennessee
16 years ago
Verified Buyer
Was this review helpful to you?
Would buy this product again
Used this as a to step down from my 120 VAC furnace HUM output to connect to my Humidifier. Easy to install. Liked the horizontal or vertical mount bracket. Did what it's supposed to do.
Chris
Chicago, IL
16 years ago
Verified Buyer
Was this review helpful to you?
