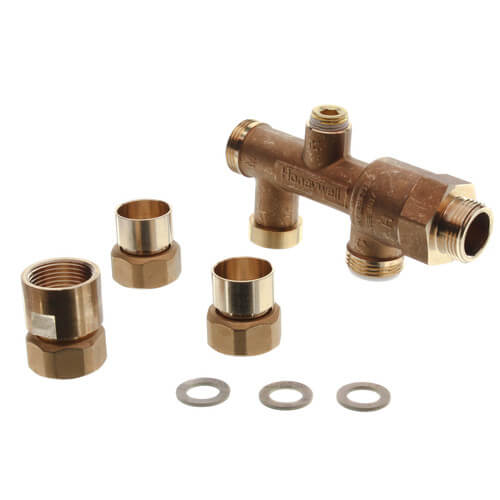

1" Union Sweat AMX Series DirectConnect (Lead Free)
Hover image to zoom
1" Union Sweat AMX Series DirectConnect (Lead Free)
Hover image to zoom
$248.35 each
In Stock
In Stock
Get 5 Fri, Apr 26
More Available
Fast Track Logo
Order by 6PM, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Type icon
C x C Connection
Size icon
1"
Flow Capacity (Cv) icon
4 Cv
Max Temp (F) icon
130°F Max Temp
Min Temp (F) icon
90°F Min Temp
Temperature Range (F) icon
90°F - 130°F

Description

**Lead Free

Patented DirectConnect design reduces installation time. Orientation of cold and hot ports eliminates need for elbows and tees on typical water heater installations. Added safety designed to prevent scalding. Increased user comfort for more available hot water. Designed to be directly installed on water heater hot outlet port.

Features
  • Designed to be directly installed on water heater hot outlet port.
  • Constant water temperature under different operating conditions
  • Proportional valve (control of hot and cold water)
  • Flow reduction in seconds if cold water supply is interrupted
  • Temperature adjustable using 3/16 allen wrench (supplied)
  • Union nuts/tail pieces included
  • Heat trapping not required
  • Recirculation port option for fast response
  • Integral check valve on cold port
  • Brass/stainless construction
  • Teflon coated wear surfaces for extended service
  • ASSE 1017 certified, CSA & IAPMO listed
  • U.S. Patent pending


Specifications
  • Description: AMX Series DirectConnect 1" Union Sweat
  • Connection Type: Sweat Union, 1 in. Bottom
  • Pipe Size (inch): 1?
  • Operating Temperature Range (F): 90 F to 130 F
  • Includes: 3/4" FNPT Inlet, (2) 1" Union Sweat fittings

Specs

Application:

Point of Source

Heating

Size:

1"

Max Temp (F):

130°F

Temperature Range (F):

90°F - 130°F

Flow Capacity (Cv):

4

Connection Type:

C x C

Connection Method:

Sweat

Material:

Brass

Valve Action:

Mixing

Lead Free:

Yes

Standards Met:

ASSE 1017

Min Temp (F):

90°F
