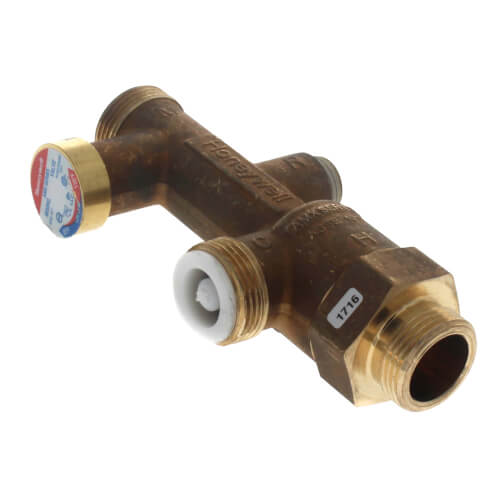

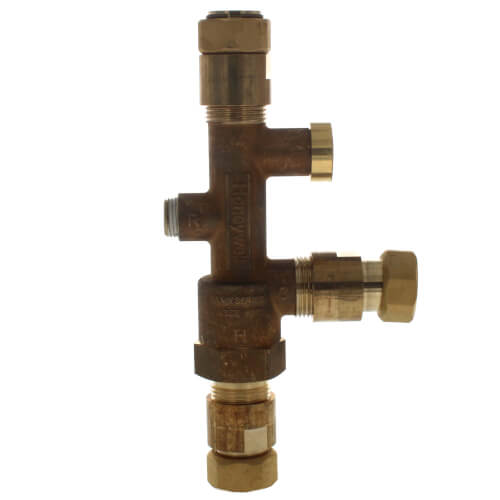

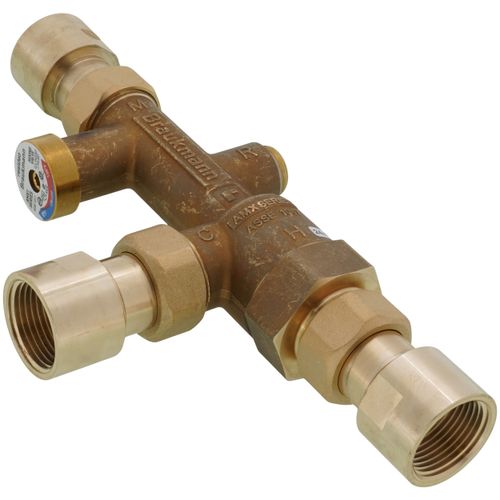

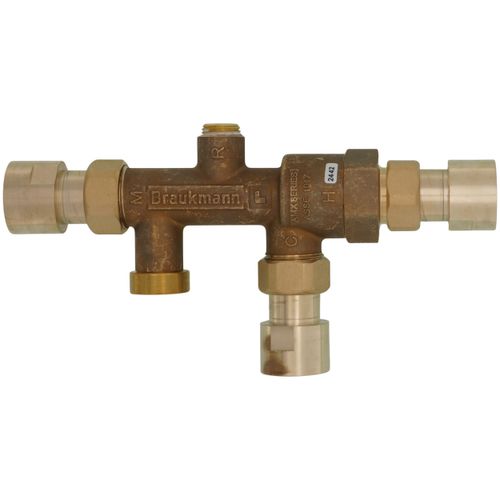

1" Union NPT AMX Series DirectConnect (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$328.00 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: AMX102-UT-1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1"
4 Cv
130°F Max Temp
90°F Min Temp
90°F - 130°F
Description
–
**Lead Free
Patented DirectConnect design reduces installation time. Orientation of cold and hot ports eliminates need for elbows and tees on typical water heater installations. Added safety designed to prevent scalding. Increased user comfort for more available hot water. Designed to be directly installed on water heater hot outlet port.
Features
Specifications
Patented DirectConnect design reduces installation time. Orientation of cold and hot ports eliminates need for elbows and tees on typical water heater installations. Added safety designed to prevent scalding. Increased user comfort for more available hot water. Designed to be directly installed on water heater hot outlet port.
Features
- Designed to be directly installed on water heater hot outlet port.
- Constant water temperature under different operating conditions
- Proportional valve (control of hot and cold water)
- Flow reduction in seconds if cold water supply is interrupted
- Temperature adjustable using 3/16 allen wrench (supplied)

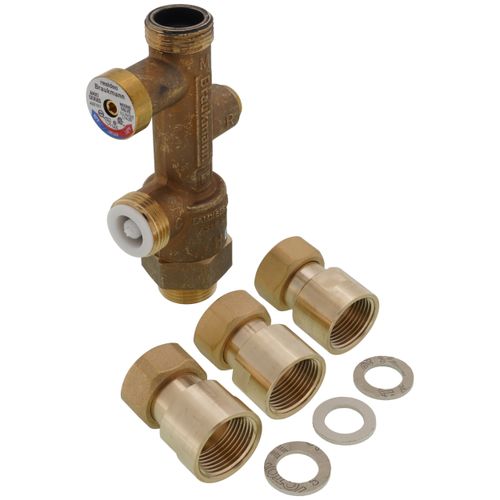

- Union nuts/tail pieces included
- Heat trapping not required
- Recirculation port option for fast response
- Integral check valve on cold port
- Brass/stainless construction
- Teflon coated wear surfaces for extended service
- ASSE 1017 certified, CSA & IAPMO listed
- U.S. Patent pending
Specifications
- Description: AMX Series DirectConnect 1" Union NPT
- Connection Type: NPT Union, 1 in. Bottom
- Pipe Size (inch): 1?
- Operating Temperature Range (F): 90 F to 130 F
- Includes: 3/4" FNPT Inlet, (2) 1" Union NPT fittings
Specs
–
| Application: | Point of Source Heating |
|---|---|
| Size: | 1" |
| Max Temp (F): | 130°F |
| Min Temp (F): | 90°F |
| Temperature Range (F): | 90°F - 130°F |
| Flow Capacity (Cv): | 4 |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Material: | Brass |
| Valve Action: | Mixing |
| Lead Free: | Yes |
| Standards Met: | ASSE 1017 |
