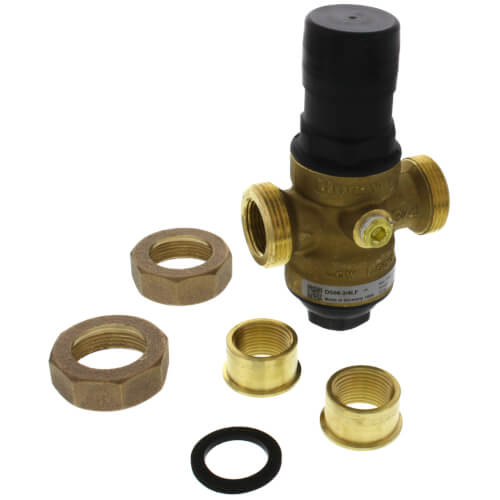

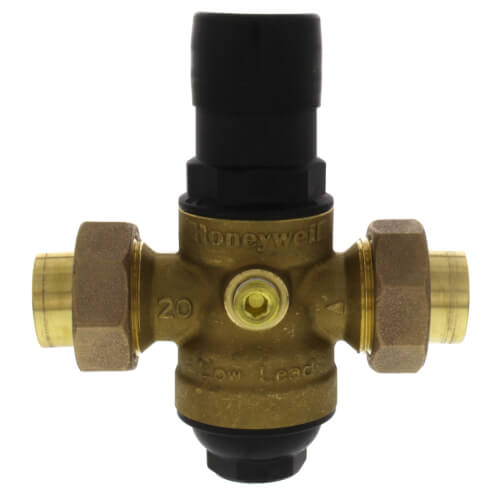

3/4" Double Union NPT DialSet Pressure Regulating Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$117.43 each
In Stock
Get 42 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: DS05D1039, D05T1060
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
90 MAX PSI
25 PSI
Union FNPT
Union FNPT
3/4"
Description
–
Overview
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
Features
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Double-Union Threaded
- Approvals, IAPMO: Listed
Features
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Specs
–
| Size: | 3/4" |
|---|---|
| Pressure Range: | 25 to 90 PSI |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 90 |
| Max Inlet Pressure: | 250 PSI |
| Outlet Type: | Union FNPT |
| Inlet Type: | Union FNPT |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Gauge: | none |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Union Fittings: | Double-Union Threaded |
| Lead Free: | Yes |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.71 out of 7 reviews
100% would recommend this product
5 star
86%
4 star
0%
3 star
14%
2 star
0%
1 star
0%
Customer Images
Showing 1-7 of 7 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Useless number dial
It's a fine regulator and does it's job. However, the inner dial with the PSI numbers is free to rotate along with the adjuster dial, so the reading is meaningless. Pressure gauge still needed.
Rob
California
2 years ago
Was this review helpful to you?
Fantastic Service
The regulator was on my stoop the next day. Great service, and packaging
Unnecessary Info
Virginia
6 years ago
Verified Buyer
Was this review helpful to you?
Maintains pressure
The static pressure creeps up though
Scott
Knoxville
9 years ago
Verified Buyer
Was this review helpful to you?
Excellent water pressure regulator
I have used these in three different installations. I prefer this double union model as they are so simple to remove - should that ever be necessary. The valve bodies are small for tight installations. So far I have found these to work very well in controlling water pressure. I do recommend installing pressure gauges on both the inflow and outflow sides of the regulator to readily monitor regulator performance.
Doc
Brighton, CO
10 years ago
Verified Buyer
Was this review helpful to you?
Great Product!
This is an extremely high quality valve and should last many years
Ziggy
McAlester, Oklahoma
10 years ago
Verified Buyer
Was this review helpful to you?
Regulating Valve
This is a more inexpensive valve that we have started using , it works well, this time I bought 4 for spares.
Dave
Dodge City Kansas
10 years ago
Verified Buyer
Was this review helpful to you?
It works
tapped into water line from street to use several outdoor spigots but street pressure too great for some hoses and house pressure fine for house but not satisfactory for outdoor jobs. Honey well valve solved problem made pressure control very simple. as stated previously it works.
gatourer
greater atlanta ga
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can this valve be installed on a vertical pipe?
Asked by Techy45 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes it can
Was this review helpful to you?
Q: Does orientation matter for the installation of this product? I would need to install with set dial facing down and the strainer bowl on top.
Asked by latenightrenovator 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes, this should be mounted in the upright position.
