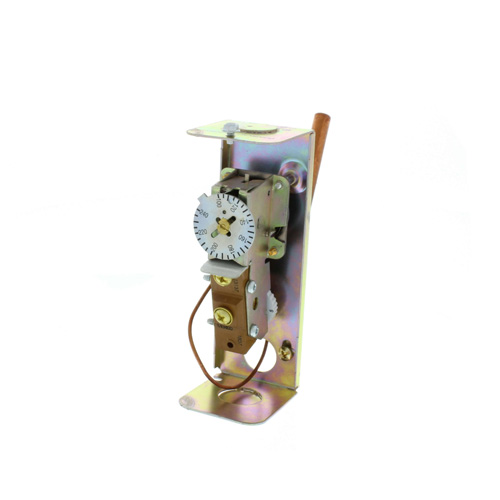

High or Low Limit Aquastat, 100-240-Degree(F) range, 5-30-Degree(F) Adj Differential, L4006A1967
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$185.97 each
In Stock
Get 11 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac
Adjustable, 5° to 30°F
Contacts Break on Temp Rise, SPST
Horizontal, Vertical
100°F to 240°F
5-5/8"
Description
–
Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.
Includes: 1-1/2" (38 mm) well, stop factory-set at 240F (116C).
Features:
Specifications:
Includes: 1-1/2" (38 mm) well, stop factory-set at 240F (116C).
Features:
- Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct or well immersion of the sensing element.
- Models available for strap-on mounting.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Select models have wells.
- UL limit rated device.
Specifications:
- Insulation Depth (in.): 1-1/2"
- Spud Size (in.): 1/2"
- Approvals, Underwriters Laboratories Inc: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Approvals, Canadian Standards Association: Certified: File No. LR95329-1
- Approvals, American Gas Association IAS: AGA Certified
Specs
–
| Application: | High Limit Low Limit |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 1-1/2" |
| Switch Action: | Contacts Break on Temp Rise SPST |
| Well Spud Size: | 1/2" NPT |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Rating: | 8A @ 120 Vac 0.25 A @ 0.25 to 12 Vdc 5.1A @ 240 Vac |
| Electrical Ratings (ALR): | 48A @ 120 Vac 30.6A @ 240 Vac |
| Differential: | Adjustable 5° to 30°F |
| Max Temp Differential: | 30°F |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | Yes |
| Mount: | Horizontal Vertical |
| Thread Type: | Male |
| Max Temp (F): | 240°F |
| Min Temp (F): | 100°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Switch Action
Well Spud Size
Temperature Range (F)
Electrical Rating
CURRENT ITEM
High Limit
Low Limit
Low Limit
Contacts Break on Temp Rise
SPST
SPST
1/2" NPT
100°F to 240°F
8A @ 120 Vac
0.25 A @ 0.25 to 12 Vdc
5.1A @ 240 Vac
0.25 A @ 0.25 to 12 Vdc
5.1A @ 240 Vac
You May Also Need
Product Reviews
5 out of 10 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 10 reviews
Good product
great value
Bill
Newark, NJ
6 months ago
Verified Buyer
Was this review helpful to you?
Easy
Good price, got it the next day, exact replacement.
Pete
New Jersey
2 years ago
Verified Buyer
Was this review helpful to you?
If I need another I would buy it here.
The delivery time is extremely fast.
Ed
Plainfield VT
3 years ago
Verified Buyer
Was this review helpful to you?
Super simplistic install
Super easy to install, I probably could have had my kid do it. Aquastat began operating as soon as it was wired in. Good quality item, arrived in half the expected time.
Hannah B.
Illinois
5 years ago
Verified Buyer
Was this review helpful to you?
Great replacement part for my aging boiler
Thanks SupplyHouse for shipping this unit overnight.
Unit was not functioning correctly due to faulty part but ordered it 6 pm and got it next day at 10 am!!
Cant be more thankful.
Will definitely recommend to others to use.
Mo the fixer
Queens, NY
6 years ago
Was this review helpful to you?
I would buy this product again!!
Great price, Fast shipping!!
HECTOR
Florida
7 years ago
Verified Buyer
Was this review helpful to you?
Boiler
This is exactly what I needed to fix my boiler. The delivery was speedy and everything worked perfectly out of the box.
Chris
Iowa
8 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
I replaced a working Honeywell Aquastat (21 years old) with this Honeywell Aquastat along with the water heater, they are very reliable and install is easy too. shipping was fast and check out fast too.
Fatboy Dave
Dolores, CO
10 years ago
Verified Buyer
Was this review helpful to you?
Great job I'm happy with my order
I can adjust the temp on my outdoor boiler very easy now
the boiler man
Chippewa Falls
13 years ago
Verified Buyer
Was this review helpful to you?
happy with this product
Just what we needed for our wood burner.
Buck
Millington,MI
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does this item come with an aquastat well?
Asked by Dan 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno it does not.
Was this review helpful to you?
Q: My plumber installed a L4006A 1967 Honeywell Aquastat because the existing one could not adequately control the temp in my verticell for my domestic hot water. The tem had been about 130F for years now it was almost 160F. I have a Burnham V-34 Boiler. Do you know if adjusting the Differencial would help this problem? What Differencial setting would you recommend for the Aquastat. Please help.
Asked by RW 16 years ago
Add your answer
Verified Reply- PexSupply StaffWhen the aquastat was installed, a heat conductive compound, such as SKU 107408, should have been used inside the well. This compound helps control the heat around the probe of the aquastat.
