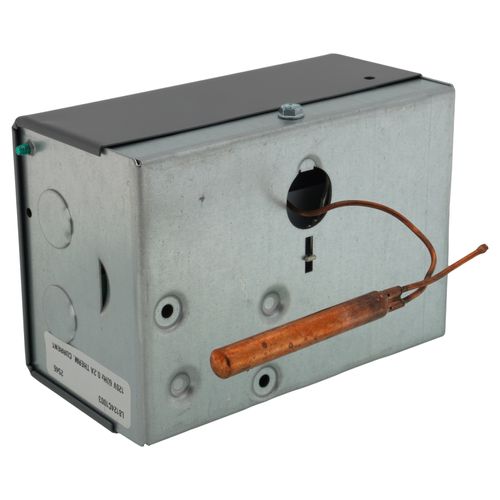

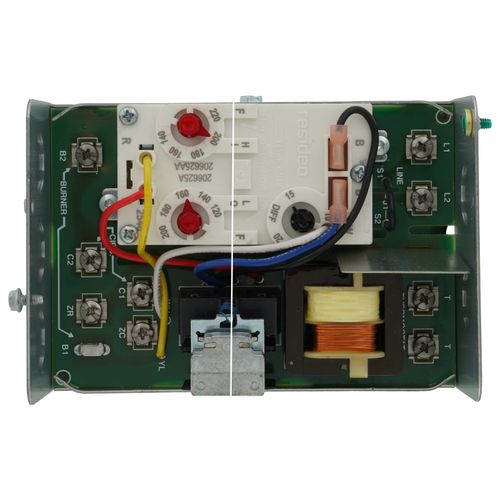

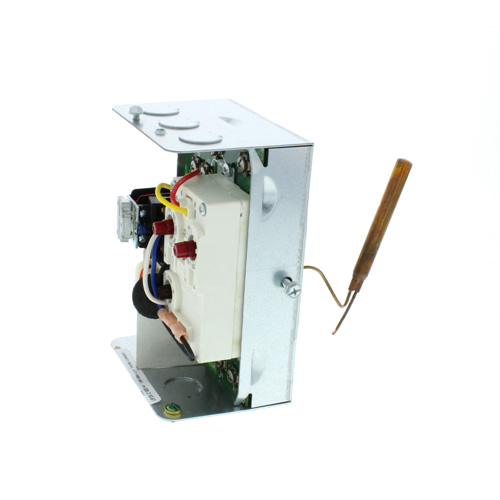

High Limit Horizontal Mount Triple Aquastat Relay, High = 10-Degree(F) Diff, Low Limit = 10-25-Degree Adj Differential, L8124C1003
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$377.34 each
In Stock
Get 9 Mon, Jun 22
Order by today, receive Monday
MANUALS (3)
This item replaces: L8124C1102
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Burner: 7.4 A @ 120 Vac, Burner: 3.7 A @ 240 Vac, Circulator: 3.7 A @ 240 Vac
Adjustable, 10° to 25°F (Low Limit), Fixed
SPST
Horizontal
110°F to 220°F, 130°F to 240°F
4.375" Height
Description
–
Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
Features
Product Specifications
Description : Triple Aquastat Relay with High limit : 10 F fixed. low limit: 10-25 F adj. Differential
Application : Triple Aquastat Relay with High limit
Operating Range, Low Limit (F) : 110 F to 220 F
Operating Range, Low Limit (C) : 43 C to 104 C
Operating Range, High Limit (F) : 130 F to 240 F
Operating Range, High Limit (C) : 54 C to 116 C
Differential Temperature (F) : High limit : 10 F fixed. low limit: 10-25 F adj.
Switching Action : SPST: High & Low Limit
Maximum Operating Pressure (psi) : 200 psi on outside of immersion well, 100 psi on capsule if inserted directly.
Maximum Operating Pressure (kPa) : 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly.
Electrical Ratings (burner AFL) : Line Voltage: 7.4 A @ 120 Vac. 3.7 A @ 240 Vac
Electrical Ratings (burner ALR) : Line Voltage: 44.4 A @ 120 Vac. 22.7 A @ 240 Vac
Electrical Ratings (circulator AFL) : 3.7 A @ 240 Vac
Electrical Ratings (circulator AFL) : 7.4 A @ 120 Vac
Electrical Ratings (circulator ALR) : 22.7 A @ 240 Vac
Electrical Ratings (circulator ALR) : 44.4 A @ 120 Vac
Voltage : 120 Vac
Frequency : 60 Hz
Dimensions (in.) : 4 3/8 in. high x 6 1/8 in. wide x 3 1/16 in. deep
Dimensions (mm) : 111 mm high x 156 mm wide x 78 mm deep
Mounting : Horizontal
Operating Humidity Range (% RH) : 0 to 95% RH, non-condensing
Maximum Ambient Temperature (F) : 150 F at switches, 265 F at sensing element.
Maximum Ambient Temperature (C) : 66 C at switches, 129 C at sensing element.
Minimum Ambient Temperature (F) : -30 F
Minimum Ambient Temperature (C) : -9 C
Electrical Connections : Quick-Connect / Screw
Features
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems.
- Provide multizone control by using a separate circulator and R845 Relay for each zone.
- Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water.
- Mount directly to boiler.
- Select models include large transformers and extra terminals for supplying power to low voltage zone valves.
- Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E).
Product Specifications
Description : Triple Aquastat Relay with High limit : 10 F fixed. low limit: 10-25 F adj. Differential
Application : Triple Aquastat Relay with High limit
Operating Range, Low Limit (F) : 110 F to 220 F
Operating Range, Low Limit (C) : 43 C to 104 C
Operating Range, High Limit (F) : 130 F to 240 F
Operating Range, High Limit (C) : 54 C to 116 C
Differential Temperature (F) : High limit : 10 F fixed. low limit: 10-25 F adj.
Switching Action : SPST: High & Low Limit
Maximum Operating Pressure (psi) : 200 psi on outside of immersion well, 100 psi on capsule if inserted directly.
Maximum Operating Pressure (kPa) : 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly.
Electrical Ratings (burner AFL) : Line Voltage: 7.4 A @ 120 Vac. 3.7 A @ 240 Vac
Electrical Ratings (burner ALR) : Line Voltage: 44.4 A @ 120 Vac. 22.7 A @ 240 Vac
Electrical Ratings (circulator AFL) : 3.7 A @ 240 Vac
Electrical Ratings (circulator AFL) : 7.4 A @ 120 Vac
Electrical Ratings (circulator ALR) : 22.7 A @ 240 Vac
Electrical Ratings (circulator ALR) : 44.4 A @ 120 Vac
Voltage : 120 Vac
Frequency : 60 Hz
Dimensions (in.) : 4 3/8 in. high x 6 1/8 in. wide x 3 1/16 in. deep
Dimensions (mm) : 111 mm high x 156 mm wide x 78 mm deep
Mounting : Horizontal
Operating Humidity Range (% RH) : 0 to 95% RH, non-condensing
Maximum Ambient Temperature (F) : 150 F at switches, 265 F at sensing element.
Maximum Ambient Temperature (C) : 66 C at switches, 129 C at sensing element.
Minimum Ambient Temperature (F) : -30 F
Minimum Ambient Temperature (C) : -9 C
Electrical Connections : Quick-Connect / Screw
Specs
–
| Application: | Triple Aquastat Relay High Limit |
|---|---|
| Switch Action: | SPST |
| Temperature Range (F): | 110°F to 220°F 130°F to 240°F |
| Electrical Rating: | Burner: 7.4 A @ 120 Vac Burner: 3.7 A @ 240 Vac Circulator: 3.7 A @ 240 Vac |
| Electrical Ratings (ALR): | Burner: 44.4 A @ 120 Vac Burner: 22.2 A @ 240 Vac Circulator: 22.2 A @ 240 Vac |
| Differential: | Adjustable 10° to 25°F (Low Limit) Fixed |
| Max Temp Differential: | 25°F 10°F |
| Min Temp Differential: | 10°F |
| Height (Inches): | 4.375" |
| Width: | 6-1/8" |
| Depth (Inches): | 3-1/16" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Max Ambient Temp (°F): | 150 F at Switches 265 F at Sensing Element |
| Mount: | Horizontal |
| Max Pressure (PSI): | 100 (Direct Immersion) 200 (Immersion Well) |
| Connection Type: | Quick-Connect |
