Description

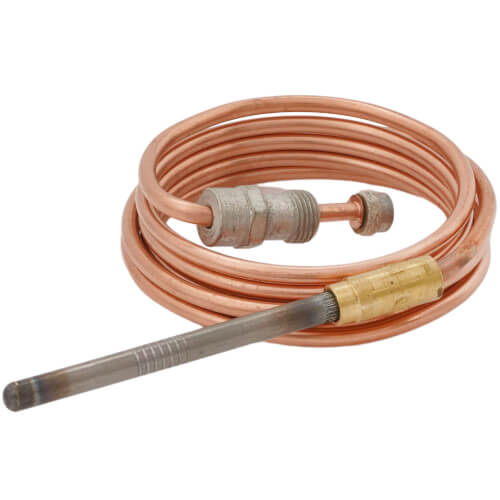

The Q340A is a premium thermocouple with the long life and durability that you demand. Built with a maximum amount of copel, the Q340A will provide long-lasting service.

Specifications
  • Voltage: 30 mV
  • Connection Type: 11/32 32 Male Connector Nut
  • Lead Length (in.): 48 in.
  • Open Circuit Output (mV): 26 mV to 32 mV
  • Resistance: 0.02 ohm
  • Temperature Ratings (F): Hot Junction 1400 F
  • Temperature Ratings (F): Cold Junction 780
  • Includes: Adapter and Push In Clip

Features
  • Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
  • Spade or quick-connect terminals available for millivolt gas control connections.
Hide Description
Manuals (1)
Specs
Length (Inches):

48"

Voltage:

30mV

Connection Type:

11/32" 32 Male Nut

Open Circuit Output:

26 mV to 32 mV

Resistance :

0.03 ohms

Temperature Rating:

Hot Junction: 1400 F

Cold Junction: 780 F

Includes:

Adapter

Push-In Clip

×
