Description

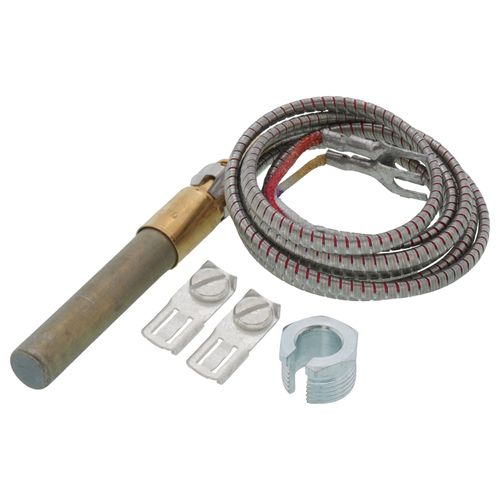

Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Features
  • Push-in clip, split nut, and adapter assembly for easy pilot burner installation

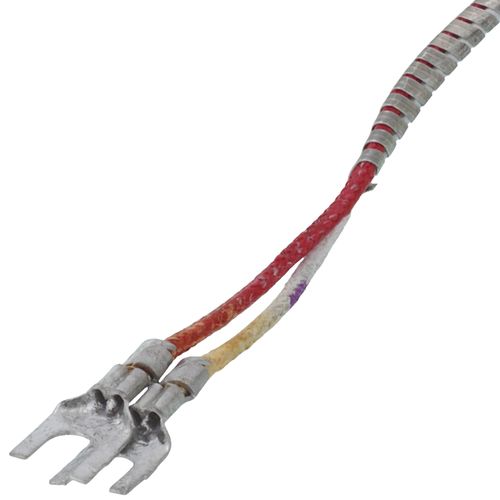

  • Spade or quick-connect terminals available for millivolt gas control connections
  • Male nut connector for Pilotstat safety control power units
  • Available in a variety of lead lengths


Specifications
  • Voltage: 750 mV
  • Connection Type: Spade Terminals
  • Lead Length (in.): 35 in.
  • Open Circuit Output (mV): 600 mV to 750 mV
  • Resistance: 2.89 ohm
  • Temperature Ratings (F): Hot Junction 1400 F
  • Temperature Ratings (F)
  • Includes: Push-in clip, 1/2 in. thermopile attaching nut
  • Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
Hide Description
Manuals (1)
Specs
Length (Inches):

35"

Voltage:

750mV

Connection Type:

Spade Terminals

Open Circuit Output:

600 mV to 750 mV

Resistance :

2.89 ohms

Temperature Rating:

Cold Junction: 780 F

Hot Junction: 1400 F

Includes:

Push-In Clip

1/2" Thermopile Attaching Nut

Used With:

Q314 Pilot Burner

Q327 Pilot Burners

Q377 Pilot Burners

Q379 Pilot Burners

Q382 Pilot Burners

Q324 Pilot Burners

×
