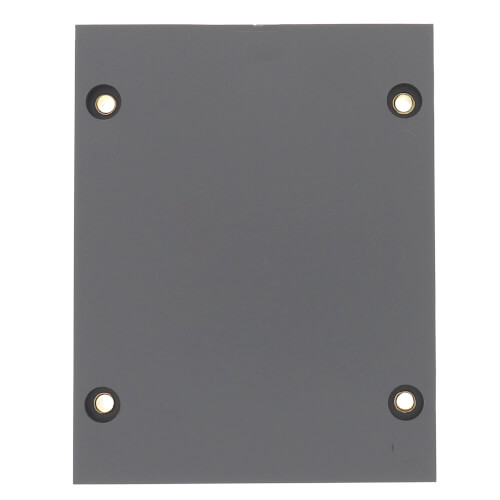

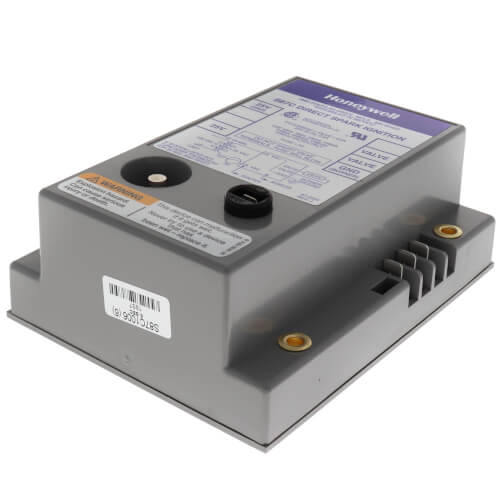

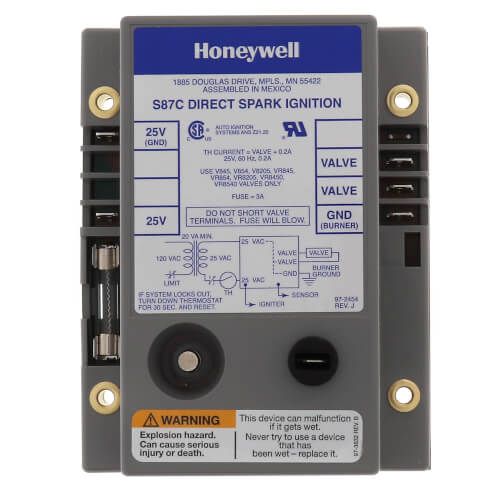

Two Rod Direct Spark Ignition Control w/ 6 Second Trial and Lockout Timing, S87C1006
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$445.57 each
In Stock
Get 2 Thu, Jul 10
Order by today, receive Thursday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Direct Spark Ignition
Description
–
Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliances.
Features
Specifications
Features
- Control ignition sequence and gas control operation.
- Generate high voltage potential for main burner ignition.
- Lockout after one trial for ignition if main burner fails to ignite.
- Reset from thermostat after lockout.
- Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2.0A or less.
Specifications
- Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
- Ignition System Type: Direct Spark Ignition
- Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
- Typical Gas Control: VR8205, VR8305
- Type of Gas: Natural or LP
- Ignition Source: Internal high voltage spark generator
- Prepurge: None
- Ignition Trials To Lockout: 1
- Typical Ignition Hardware: Q347A
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Max Ambient Temperature: -40 F to +175 F
- Includes: Alarm terminal
- Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
Specs
–
| Ignition Trial Time: | 6 Seconds |
|---|---|
| Lockout Timing: | 6 Seconds |
| Flame Sense: | Two Rod |
| Pre-Purge Time: | None |
| Ignition Type: | Direct Spark Ignition |
