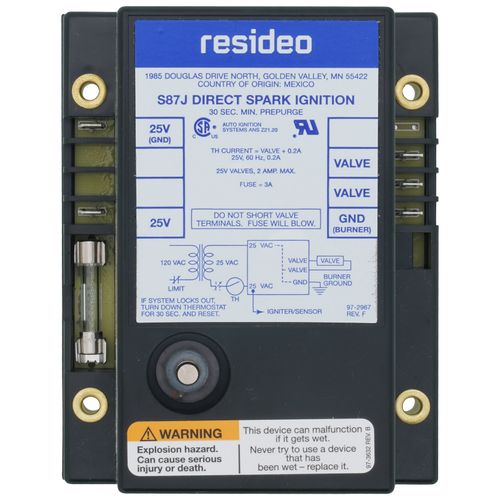

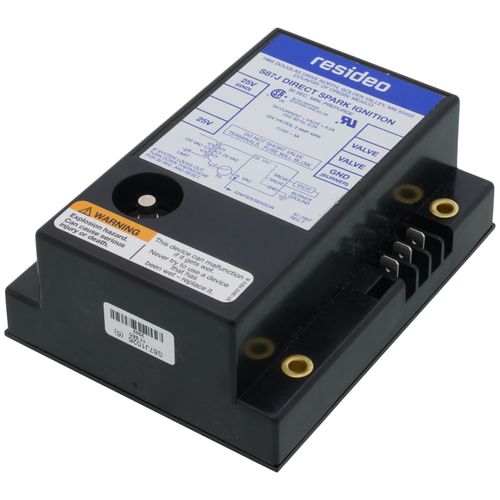

Single Rod Direct Spark Ignition Control w/ 11 Second Trial and Lockout Timing, S87J1026

Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliances.

Features

• Control ignition sequence and gas control operation.
• Generate high voltage potential for main burner ignition.
• Lockout after one trial for ignition if main burner fails to ignite.
• Reset from thermostat after lockout.
• Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2.0A or less.

Specifications

• Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
• Ignition System Type: Direct Spark Ignition
• Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP
• Ignition Source: Internal high voltage spark generator
• Ignition Trials To Lockout: 1
• Maximum Valve Load @ 24 Vac (Amps): 2A
• Typical Ignition Hardware: Q347A
• Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Includes: Alarm terminal
• Flame Failure Response Time: 0.8 sec. @ 5.0 microamp

Note: Maximum Valve Load @ 24 Vac (Amps): 2A
