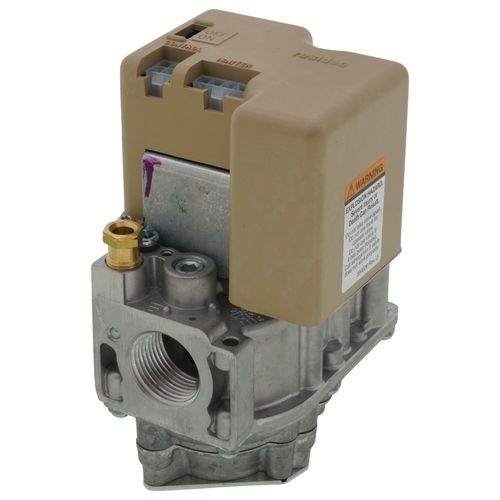

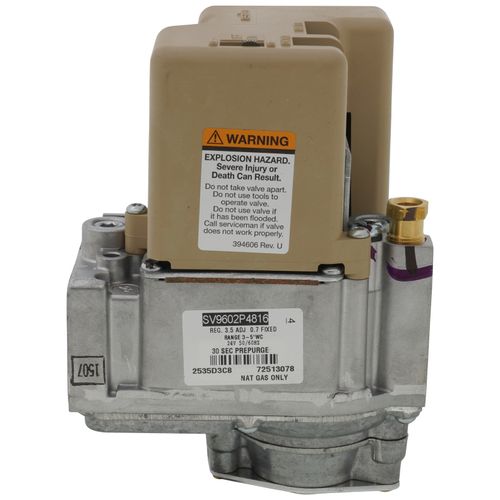

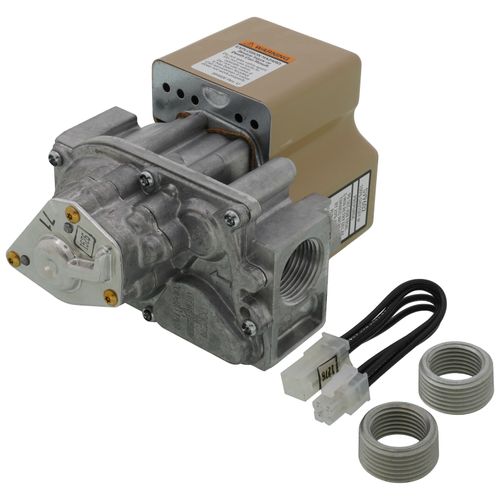

Intermittent Hot Surface Pilot Ignition SmartValve Control - Step Opening, SV9602P4816
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$434.53 each
In Stock
Get 9 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: SV9501P2053, SV9602P4105, SV9601P4107, SV9501P2004, SV9502P2101
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
3/4"
3/4"
24V
Intermittent Hot Surface Pilot
Straight-Through
Description
–
Product Overview:
- The SV9602 SmartValve System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. This system is suitable for application in a wide range of gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, space heaters, water heaters, decorative appliances, and commercial cooking units. The specific application of the SmartValve System is the responsibility of the appliance manufacturer.
- Description: 3/4 in. NPT x 3/4 in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with step opening and Full Rate: 3.5 in. wc; Step Setting: 0.7 in. wc pressure regulator setting
- Flame Sense: Two Rod
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: continuous retry
- PrePurge: 30 seconds
- Body Pattern: Straight-through
- Opening Characteristics: Step Opening
- Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz.
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 50 Hz; 60 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in.long
- Dimensions (mm): 81 mm wide x124 mm high x 104 mm long
- Pressure Regulator Setting (psi): Full Rate: 3.5 in. wc; Step Setting: 0.7 in. wc
- Pressure Regulator Setting (kPa): Full Rate: 0.87 kPa; Step Setting: 0.17 kPa
- Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT.
- Maximum Capacity (ft³/hr): 415 ft³/hr
- Maximum Capacity (m³/hr): 11.8 m³/hr
- Minimum Capacity (ft³/hr): 30 ft³/hr
- Minimum Capacity (m³/hr): 0.8 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 300 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 8.5 m³/hr
- Pressure Tapping: 1/8 in. - NPT
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Approvals, Canadian Standards Association: CSA-International, Design Certified
Specs
–
| Replaces: | SV9602P4105 SV9601P4107 SV9502P2101 SV9501P2004 SV9501P2053 |
|---|---|
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 90 sec |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
| Ignition Type: | Intermittent Hot Surface Pilot |
| Ignition Trials to Lockout: | Continuous Retry |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.72 out of 18 reviews
94% would recommend this product
5 star
89%
4 star
6%
3 star
0%
2 star
0%
1 star
6%

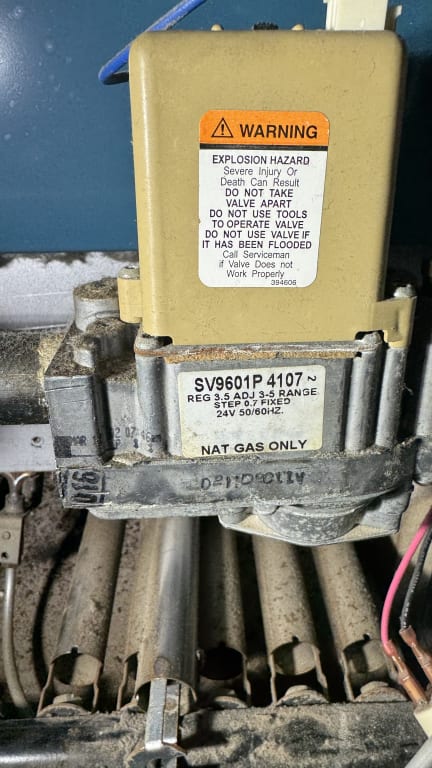

Customer Images
