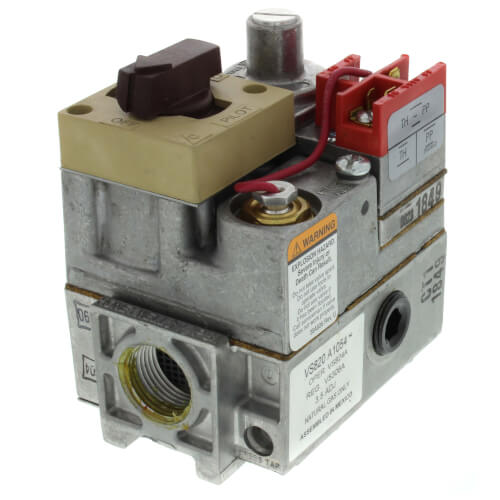

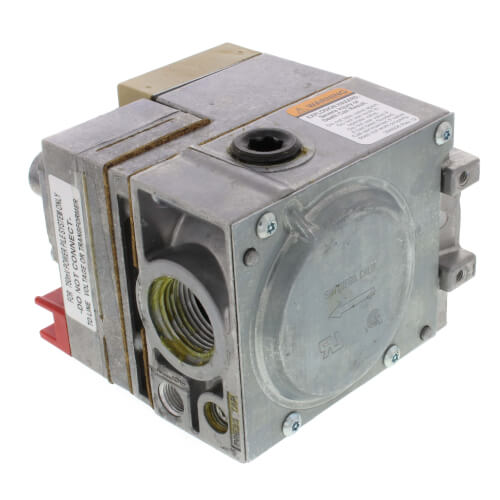

Standard PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VS820A1054 has been discontinued
Discontinued March 28, 2024
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: VS820A1047
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Product Highlights
–
Natural Gas
3/4"
3/4"
335000 BTU Capacity
Description
–
Note: This is the direct replacement for Slant/Fin 410-521-000
Product Overview:
Product Features:
Product Specifications:
Product Overview:
- These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mv Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.
Product Features:
- Includes pilot flow adjustment screw
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff
- Complete safety shutoff on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- ECO connector for V800 models, Part No. 392451-1
Product Specifications:
- Description: 3/4 in. NPT x 3/4 in. NPT PowerPile Millivolt Combination Gas Valve with 3.5 in. wc adjustable pressure regulator setting
- Application: Self-powered automatic control - Use with 750 mV pilot generator
- Type of Gas: Natural
- Pressure Regulator: Standard
- Electrical Ratings: 750 mV
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Body Pattern: Straight-through - multi-tapped with 1/2 in. right and left outlets plugged, except as noted
- Pressure Tapping: 1/8 in. npt with plug
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets
- Pressure Regulator Setting (psi): 3.5 in. wc Reg. Set/3-5" Adj. Range
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Electrical Connections: Terminal block has 3 combination screw and 1/4 in. quick connect terminals
- Temperature Range (F): 32 F to 175 F
- Temperature Range (C): 0 C to 79 C
- Dimensions (in.): 4 3/4 in. high x 4 1/16 in. wide x 3 3/16 in. deep
- Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
- Approvals, American Gas Association: AGA Design Certified: File no. L2025003
- Approvals, Canadian Gas Association: CGA Design Certified: File no. L2025003
- Includes: One 1/2" x 3/8" reducer bushing, two 3/4" x 1/2" reducer bushings
Specs
–
| Inlet Size: | 3/4" |
|---|---|
| Outlet Size: | 3/4" |
| Fuel Type: | Natural Gas |
| Capacity (BTU): | 335000 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Inlet Size
Outlet Size
Fuel Type
Capacity (BTU)
CURRENT ITEM
3/4"
3/4"
Natural Gas
335000
You May Also Need
Product Reviews
4.9 out of 20 reviews
100% would recommend this product
5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 20 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Glad that supply house is around
I use it to replace a vs821a gas valve which is no longer available did a lot of research and found out that the Vs820a was a replacement for it the only problem is that the 821 has 4 wire spots for 6 wires and the 820 valve has 3 took a while to get the wires on the right terminal but it is working now supply house didn't say that it was a replacement part but it is if you just keep looking at different places you will see that it is a replacement part they have been really good to work with me and the price is a good for one will be buying from them again
Dazed and Confuse
Greenville Tx
4 years ago
Verified Buyer
Was this review helpful to you?
Great service
Excellent service very fast delivery. Great product line.
Gary
Rochester NY
5 years ago
Verified Buyer
Was this review helpful to you?
I would purchase from this company again.
Installed the gas valve in my fireplace and it works great! Very fast shipping.
Mike
Collierville, TN
5 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
Millivolt valve for pool boiler. Quick ship. No issues.
JW
Detroit
6 years ago
Verified Buyer
Was this review helpful to you?
they match a old gas valve
new gas valve works great the old one was 25 plus years old they match it
bill
mich.
7 years ago
Verified Buyer
Was this review helpful to you?
Great service
Exactly as described, competitive price, and delivered next day before noon exactly as promised. Will definitely buy from again.
jimbo the bimbo
boston
9 years ago
Verified Buyer
Was this review helpful to you?
As described
exact replacement, Honeywell
Tall Stacey
Pennsylvania
10 years ago
Verified Buyer
Was this review helpful to you?
Exceptional value!! Unbelievable price!!
Exact Same valve that was on my 40 year old hot water boiler. Was very easy to change.
Bob M.
Monaca, PA
10 years ago
Verified Buyer
Was this review helpful to you?
ok
A+++++++++++++++++
zm
brooklyn
11 years ago
Verified Buyer
Was this review helpful to you?
Good
Arrived earlier. Works great.
First Time Buyer
Union, NJ
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: I need to replace a fireplace Honeywell Gas Control Valve. Its for a OLD Majestic Fireplace. The BTU rating on the fireplace is 19,000. Is this valve adjustable to that spec?
Asked by Michael 13 years ago
Add your answer
-
I don't think that these valves are adjustable at all. At least on my boiler, the rate of flow is controlled by an adjustable diaphragm that is "downstream" and part of the burner. When I've replaced the valve, I've never had to perform any adjustment. I think that the installation booklet for the valve can be found on the internet, so if there's an adjustment, it will describe it there. By the way. Before you change the valve, you should thoroughly check out the power pile and the circuit from the power pile to whatever electric controller there is and the valve, itself. I had a series of what I thought was valve problems that I eventually traced to an intermittent connection between the valve and the thermostat.
