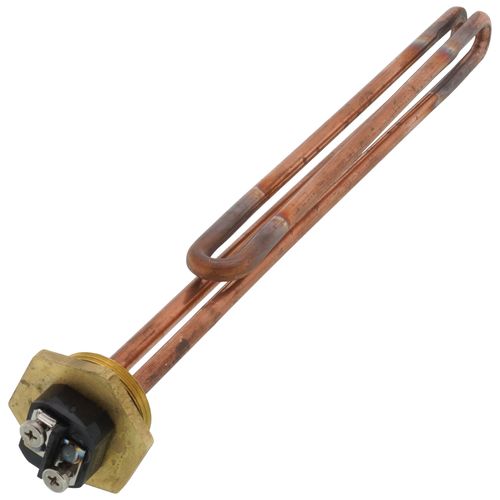

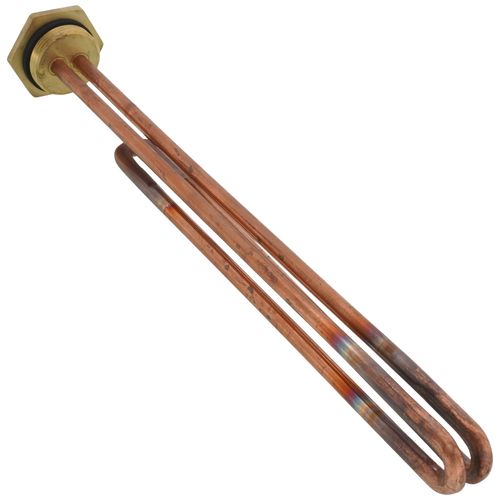

3800W CO UF Element (240V)SP610130 3800W CO UF Element (240V)
|7||Thu, Jul 7|
|5||Fri, Jul 8|
Free Shipping On orders over $99
Need replacement parts for this unit?
- Watt Density Classification: LWD
- Input Voltage (V): 240
- Wattage at 240V (W): 3800
- Watt Density at 240V (W/sq. in. ): 83
- Cold Resistance (ohms): 15.6
- Outer Sheath Material: Copper
- Resistored: No
- Configuration: Foldback
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 13.44
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-1/2
- Nominal Thread Size - (in.): 1-1/2
- Threads per Inch: 12
- Thread Type Series Designation: UNF
- Hex Head Size - Across Flats (in.): 1-7/8
