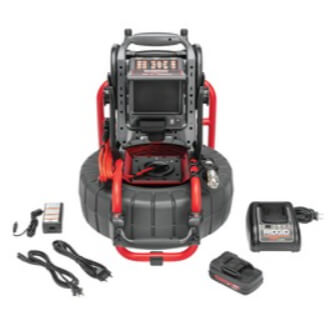

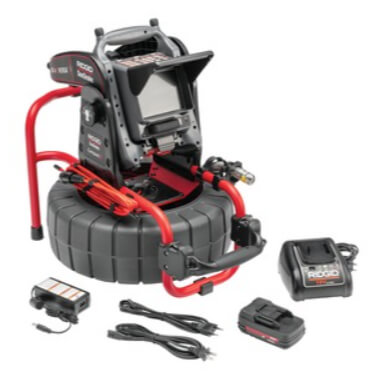

131' Compact M40 SeeSnake (Stiff Cable) 25 mm CS6x VERSA Monitor w/ Battery & Charger

The Compact M40 offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSense technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.

Product Features

• Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.
• Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
• Powerful Flexmitter sonde has long range and preserves the camera's ability to make turns.
• High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
• TiltSense displays the camera's angle in a pipe on a connected SeeSnake CSx series monitor.

Product Specifications

• Line Capacity: 1.5" to 8"
• Push Cable Length: 131'
• Push Cable Diameter: 0.36"
• Push Cable Core: 0.14"
• Fiberglass Push Cable Bend Minimum Radius: 3"
• Weight (without batteries) 22 lbs.
• Size Length: 25"
• Width:14"
• Height:17"
• Camera Type:1"
• Frequency: 512Hz
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Storage Temperature: 14°F to 158°F (-10°C to 70°C)
• Ingress Protection (without Monitor): IPx5

Includes:

• (1) SeeSnake Compact M40 Reel (63673)
• (1) CS6x VERSA Digital Recording Monitor with AC Adapter (64943)
• (1) 2.0Ah 18V Battery (66003-RIDGID)
• (1) 120V Charger
• (1) Docking System
• (1) Pipe Guide Kit
• (1) Spanner Wrench
• (1) Manual
