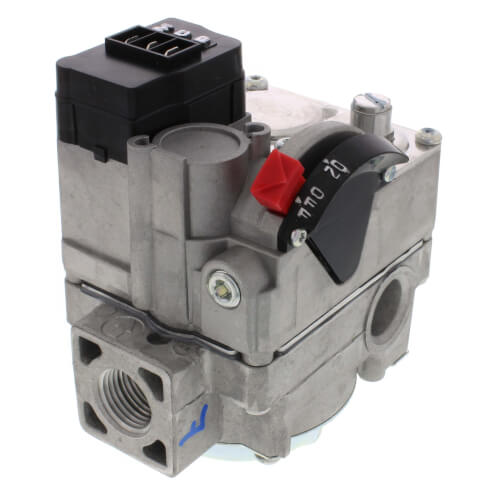

1/2" X 3/4" Actuated Gas Valve (150,000 BTU)

SKU:
720-070
Rating:
(0)
Q&A:
(0)
1/2" X 3/4" Actuated Gas Valve (150,000 BTU)
Hover image to zoom

1/2" X 3/4" Actuated Gas Valve (150,000 BTU)

SKU:
720-070
Rating:
(0)
Q&A:
(0)
$241.57 each
In Stock
In Stock
Get 8 Thu, Feb 9
More Available
Fast Track Logo
Order by today, receive Thursday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
Fuel Type icon
Propane, Natural Gas
Inlet Size icon
1/2"
Outlet Size icon
3/4"
Capacity (BTU) icon
150000 BTU Capacity
Voltage icon
24v
Ignition Type icon
Standing Pilot
Description
The 720 Series Dual Valve Gas Controls are designed for a wide variety of heating applications and can be used to replace most constant pilot valves, including dual valve (six function) models. The 720 Series constant pilot gas valve is a six function valve incorporating a manual valve, safety shutoff magnet, dual automatic valves (hence the term "dual valves"), main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kits® are factory-set at 3.5" W.C. for natural gas, but can be converted to L.P. by installing the regulator conversion kit included. The 720 Series feature an integral manual selector used to select from the 4 gas flow positions ? off, on, pilot and "set". The "set" position provides pilot only gas flow during magnet energizing and lock up. Built-in stops serve to prevent accidental setting to the off position. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16" swing radius, the 720 series lends itself well to replacing many OEM valves. Controls are multiposition and can be mounted in any position (except upside down). To prevent unsafe attempts at repair, special screws are used and replacement parts are NOT available.

Features
  • Electrical Ratings: 24 VAC, .5 amps, 50/60 Hz
  • Pressure regulator: Natural Gas factory set at 3.5" W.C.

    L.P. Gas factory set at 11.0" W.C.
  • Pilot Outlet: 1/4" tubing
  • Ambient Temperature: ?40° to 175°F
  • Maximum Inlet Pressure: 14" W.C. (1/2 PSI)
Specs
Fuel Type:

Propane

Natural Gas

Voltage:

24v

Inlet Size:

1/2"

Outlet Size:

3/4"

Capacity (BTU):

150000

Ignition Type:

Standing Pilot
