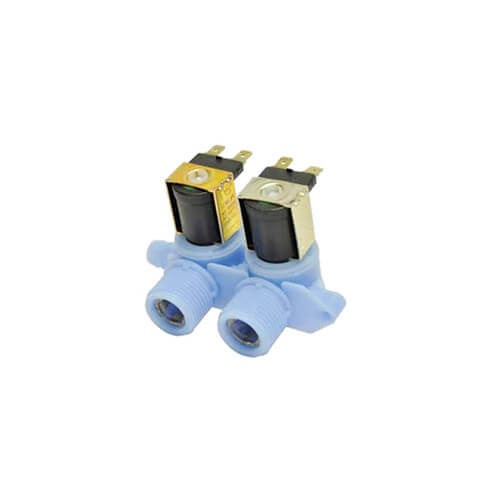

E-2 Residential Clothes Washer Mixing Water Valve, 60 Hz (120V)

The Robertshaw® E-1, E-2 and E-2T Mixing Water Valve Series is designed for laundry clothes washer applications. The E-1 models are non-regulated, the E-2 models have flow control in the outlet, and the E-2T models have an additional thermistor added for temperature monitoring.

Features:

• Pilot-operated diaphragm provides high flow capacity with minimum power requirements
• Compact design compared to predecessor valves to allow more flexibility for applications
• Flange mounting with screw boss is molded into the body for ease of installation
• Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces
• Improved coil bobbin design reduces problems
• Slow closing operators reduce water hammer and extend valve life
• Spin-weld assembly minimizes problems caused by loose or missing screws
• Suitable for applications using liquids up to 160°F (71°C)
• Quiet operation
• Stainless steel inlet screens with 60 x 60 mesh (60 holes/inch in both x and y directions)
