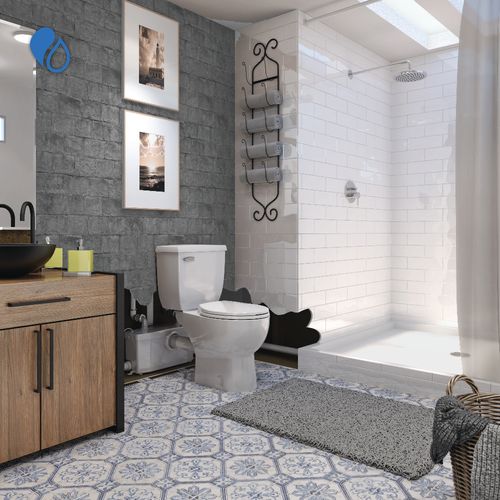

The Saniflo 002 SANIPLUS Macerating Pump is a 1/2 HP unit designed to install a complete bathroom up to 15 feet below the sewer line or 150 feet away from a soil stack. It efficiently handles waste from a toilet, sink, bathtub, and shower, making it ideal for basement or remote bathroom installations.
Key Features
- 1/2 HP motor with sealed oil-filled enclosure
- Stainless steel macerator blades rotating at 3600 RPM
- Dimensions: 10-5/8" H x 20" W x 7" D
- Discharge capacity: up to 15 ft vertically or 150 ft horizontally
- Discharge pipe size: 3/4" or 1"
- Includes non-return valve on discharge elbow
- Two 2" side inlets for sink, bathtub, or shower connections
- 11/2" vent connection on top of the unit
- Compatible with Saniflo rear-discharge toilets
Compatibility & Applications
- Suitable for residential installations requiring a full bathroom
- Compatible with toilets, sinks, bathtubs, and showers
- Ideal for basement bathrooms or locations far from the main soil stack
Maintenance & Troubleshooting
- Regular descaling recommended to prevent limescale buildup
- If the unit runs continuously, check for blockages or a faulty microswitch
- In case of reduced performance, inspect for obstructions in the impeller or discharge line
- Avoid using excessive toilet cleaner to prevent damage to rubber components
Certifications & Compliance
- CSA (IPC, NSPC) certified
- IAPMO (UPC)
