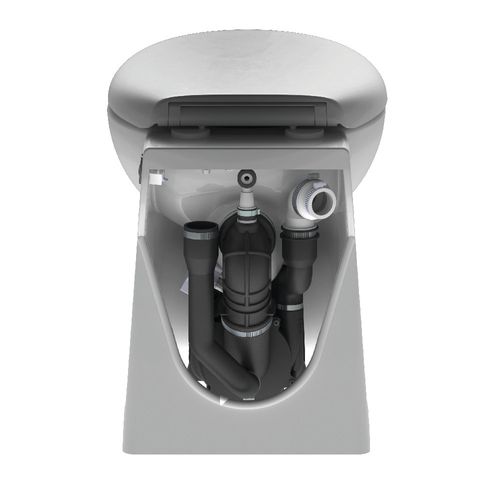

Sanicompact 4C Dual Flush Macerating One Piece Toilet System

The Saniflo 024 Sanicompact 4C is a self-contained, floor-mounted, dual-flush toilet system with an integrated macerator pump. Designed for residential applications, it enables the installation of a half-bathroom up to 9 feet below the sewer line or 120 feet away from a soil stack, without requiring gravity drainage or a traditional vent stack.

Key Features

• 1/2 HP oil-filled, thermally protected motor
• Dual flush system: 1.28 GPF (4.8 L) or 1.0 GPF (3.8 L)
• Discharge capacity: up to 9 ft vertically or 120 ft horizontally
• Macerator blades rotate at 3600 RPM
• Compact dimensions: 16.5" D x 14.5" W x 18.25" H
• Noise level: (_<) 52 dBA at 3 ft
• Includes soft-close toilet seat
• 2-year warranty

Compatibility & Applications

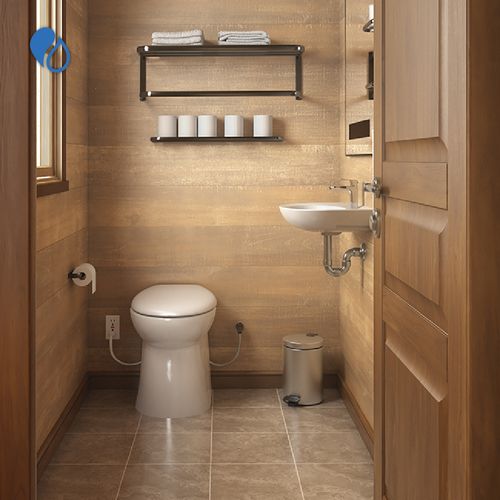

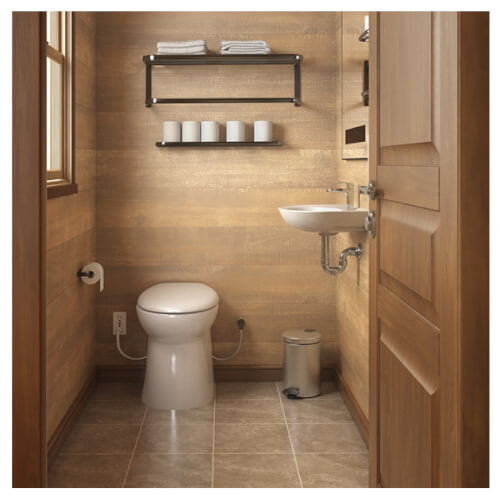

• Suitable for residential half-bathroom installations
• Ideal for spaces without gravity drainage, such as basements, attics, or additions
• Handles black water from the toilet and gray water from a sink

Installation & Operation Notes

• Floor-mounted installation; no external tank required
• Integrated 1-1/4" inlet for sink connection
• 1" discharge pipe diameter
• Rotatable 360° discharge elbow with built-in non-return valve
• Activated by push-button, triggering an electrically timed flush cycle
• Electrical requirement: 120V, 60Hz, 7.2A

Certifications & Compliance

• CSA (IPC, NSPC) certified
• Complies with ASME A112.3.4 and CSA B45.9 standards
