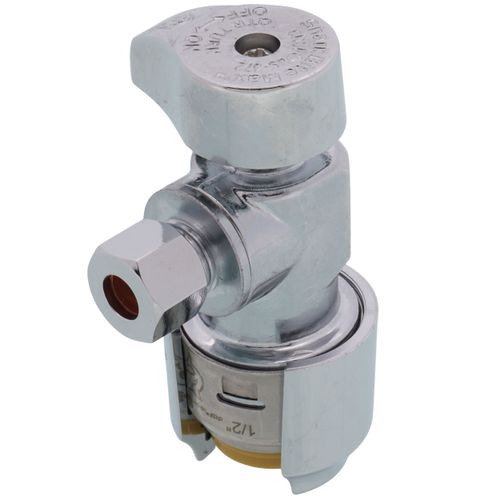

Main product image of 1/2" SB Max X 1/4" Compression Angle Stop
Magnifying glass
Hover image to zoom

1/2" SB Max X 1/4" Compression Angle Stop

Brand:
SharkBite
SKU:
UR23336
Rating:
(0)
Q&A:
(0)
1/2" SB Max X 1/4" Compression Angle Stop
Magnifying glass
Hover image to zoom
$13.80 each
BOX UP & SAVE 8%
$76.20 box of 6
$12.70 each
In Stock
In Stock
Get 130 Tue, Jul 7
Order by today, receive Tuesday
Size:
1/2" x 1/4"
1/2"
1/2" x 1/4"
1/2" x 3/8"
1/2"1/2" x 1/4"1/2" x 3/8"
Material:
Chrome Plated Brass
Brushed Nickel
Chrome Plated Brass
Brushed NickelChrome Plated Brass
This item replaces: 77503, 23336-0000LF
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1/2" x 1/4"
Product Highlight: Material
Chrome Plated Brass
Product Highlight: Tubing Compatibility
CPVC, OD Controlled Copper, PEX
Product Highlight: Fitting System Compatibility
Push Fit
Product Highlight: Standards Met
NSF, ASTM F877, ASTM F1960 Standards Met
Product Highlight: Inlet Size
1/2"

Description

–
SharkBite Max Angle stops are used on stub-outs coming out of the wall and are used to control and shut off water flow to fixtures and appliances for maintenance and repair. Innovative design with a 1/2 in. push-to-connect inlet makes for quick installation, and quarter-turn full-port brass ball valves make for easy operation. Ideal for working in tight spaces. Faster install times and ease of use reduce installation errors.

Features:
  • Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
  • Can be installed on wet lines and pressure tested immediately.
  • Stainless steel retainer adds strength and durability.
  • High-performance DZR lead-free brass body.
  • No special tools, crimping, soldering or glue required.
  • Can be rotated after installation.
  • No tube liner required for PEX.
  • Rated to 160°F and 125 psi.

Specs

–
Size:

1/2" x 1/4"

Application:

Plumbing

Inlet Size:

1/2"

Outlet Size:

1/4"

Valve Type:

Angle

Warranty:

25 Year

Standards Met:

NSF

ASTM F877

ASTM F1960

Fitting System Compatibility:

Push Fit

Tubing Compatibility:

CPVC

OD Controlled Copper

PEX

Body Pattern:

Angle

Max Pressure (PSI):

200

Temperature Range (F):

40°F to 180°F

Material:

Chrome Plated Brass

Insertion Depth:

15/16"
