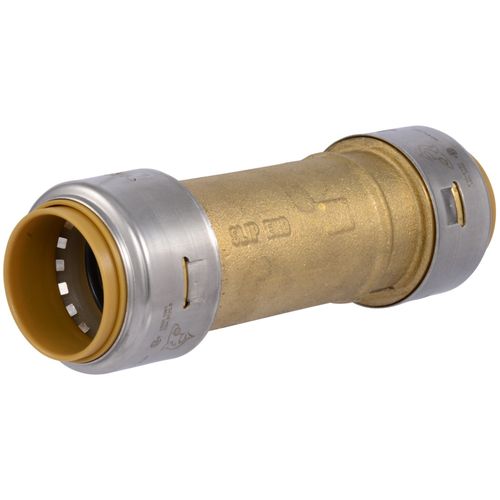

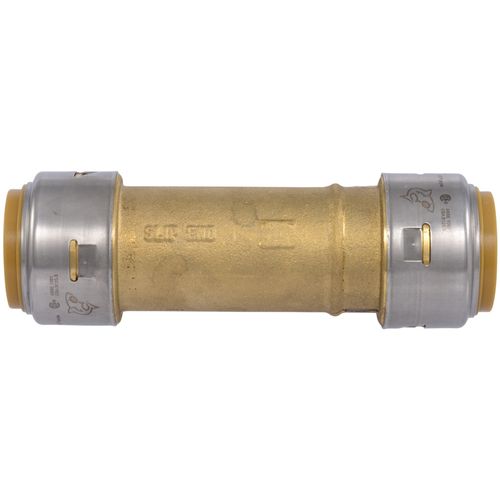

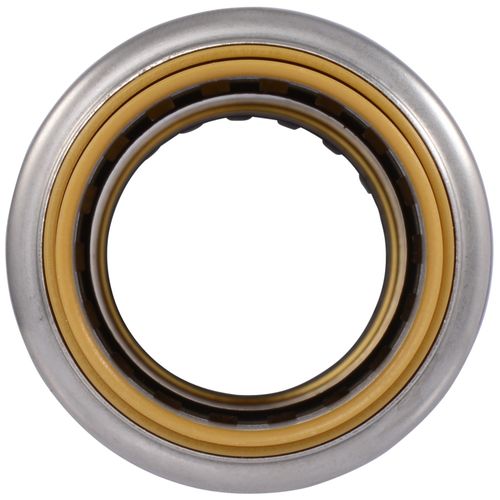

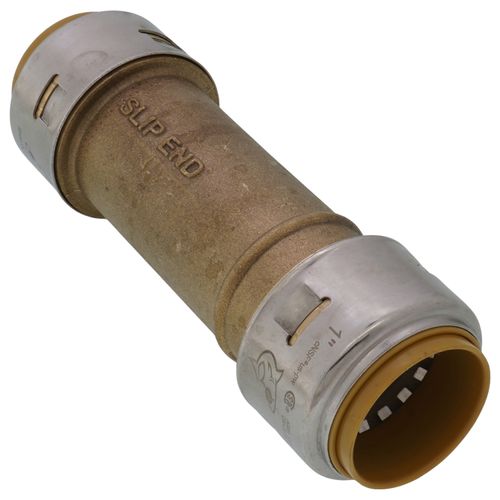

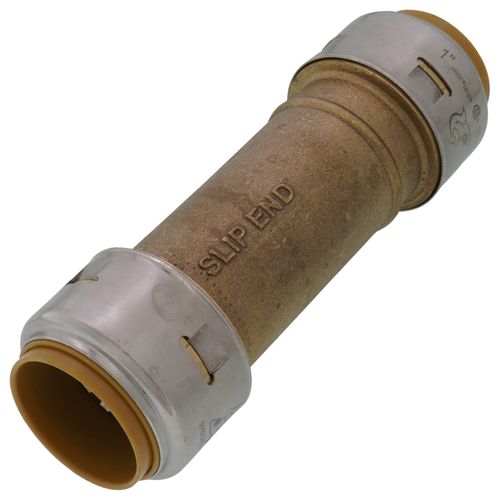

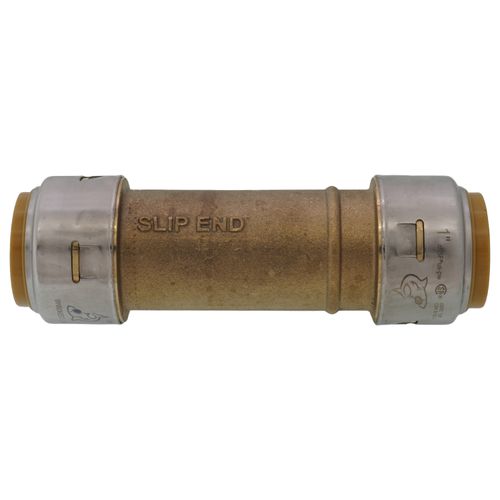

1" SharkBite Max Slip Coupling (Lead Free), UR3020A

Note: Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).

Overview:

SharkBite Max slip couplings are ideal for making quick repairs on pipe,  the slip end is only compatible with copper or CPVC.  Using a single fitting,  you can remove up to two inches of damaged pipe to make a repair, with the need for additional pipe or fittings.  Max slip couplings  are ideal for working in tight spaces and can be leveraged wherever repairs are needed.

Features & Benefits:

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
• Half the insertion effort, double the pressure rating.**
• Can be installed on wet lines and pressure tested immediately.
• Stainless steel retainer adds strength and durability.
• High-performance DZR lead-free brass body.
• No special tools, crimping, soldering or glue required.
• Can be rotated after installation.
• Rated to 200F and 400 psi.
• 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
• 5-year warranty when properly installed with HDPE SDR-9.
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.

Approvals & Listings:

• ASSE 1061
• CSA B125.3
• NSF/ANSI 14
• NSF/ANSI/CAN 61
• NSF/ANSI/CAN 372
• ASTM E84
• CAN/ULC S102.2
• UL 263
• ASTM E119
• CAN/ULC S102
