Description
Designed to work with either pneumatic or electronic actuators with a 3/4-inch (20 mm) stroke, the Flowrite Three-way or Two-way Globe Valves are available in ANSI Class 250.

Features:
  • Direct-coupled, universal bonnet
  • Equal percentage (NC port) or linear flow (NO port) characteristics
  • Brass or stainless steel trim
  • Accepts any 3/4-inch Flowrite pneumatic or electronic actuator
  • Greater than 100:1 rangeability
  • ANSI Leakage Class IV (0.01% of Cv)
  • Cartridge-type packing for easy service
  • FxF or UFxUF end connections available
  • Orderable as a valve only or as a complete valve/actuator assembly

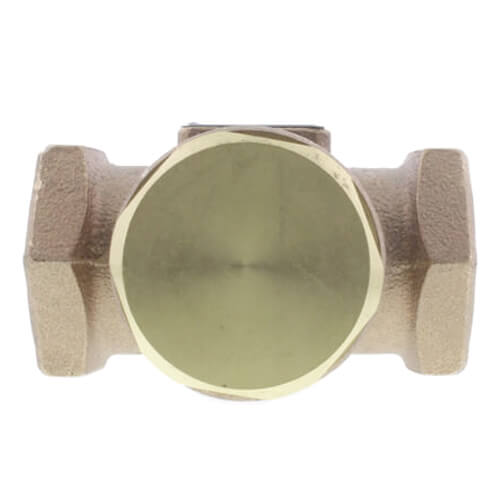

Note: Image may not be actual representation of item.
Read more
Manuals (1)
Specs
Product Type:
Globe Valve
Connection Type:
FNPT x FNPT
Body Pattern:
2-Way
Flow Capacity (Cv):
16
Connection Size:
1-1/4"
Position:
Normally Closed
Material:
Stainless Steel
×
