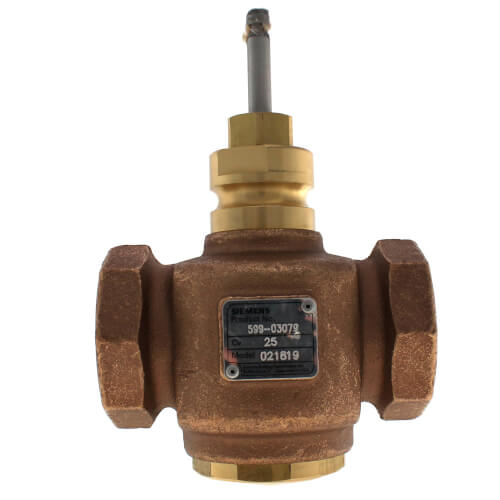

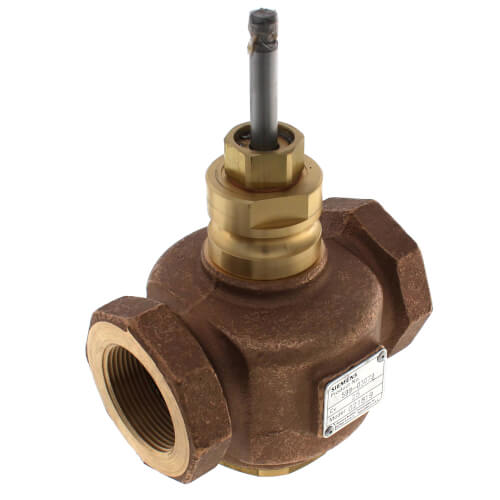

1-1/2" 2-Way N/C Stainless Steel Linear Valve Body, Female x Female (25 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$514.03 each
Out of Stock
Get it Tue, Oct 17 - Tue, Oct 24
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
25 Cv
FNPT x FNPT Connection
2-Way
1-1/2" Connection
Normally Closed
Stainless Steel
Description
–
Designed to work with either pneumatic or electronic actuators with a 3/4-inch (20 mm) stroke, the Flowrite Three-way or Two-way Globe Valves are available in ANSI Class 250.
Features:
Features:
- Direct-coupled, universal bonnet
- Equal percentage (NC port) or linear flow (NO port) characteristics
- Brass or stainless steel trim
- Accepts any 3/4-inch Flowrite pneumatic or electronic actuator
- Greater than 100:1 rangeability
- ANSI Leakage Class IV (0.01% of Cv)
- Cartridge-type packing for easy service
- FxF or UFxUF end connections available
- Orderable as a valve only or as a complete valve/actuator assembly
Specs
–
| Product Type: | Globe Valve |
|---|---|
| Body Pattern: | 2-Way |
| Flow Capacity (Cv): | 25 |
| Connection Size: | 1-1/2" |
| Connection Type: | FNPT x FNPT |
| Position: | Normally Closed |
| Material: | Stainless Steel |
