$3,566.89 each
In Stock
Get 1 Tue, Jun 23 - Thu, Jun 25
MANUALS (1)
Lift Gate
–
This product weighs 100 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Threaded Connection
Steel
248°F Max Temp
Description
–

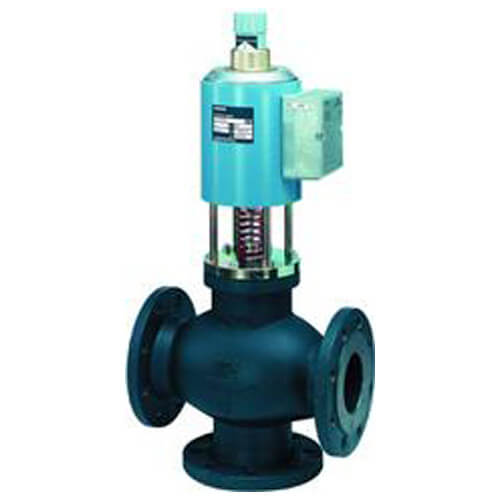

for chilled and low-temperature hot water systems or for systems with media containing mineral oils (M3P..FYP). The control valves are mixing or through-port valves with the ready fitted magnetic actuator for position feedback. The short positioning time, high resolution and high range-ability make these valves ideal for modulating the control of chilled and low-temperature hot water systems.
Features:
Features:
- Fast positioning time (1 s), high-resolution stroke (1 : 1000)
- Positioning signal: DC 0...10 V or DC 4... 20 mA
- Fail-safe feature: 1 ? 3 closed when de-energized
- Low friction, robust, no maintenance required
- Indication of operating state, position feedback and manual control
Specs
–
| Voltage: | 24V |
|---|---|
| Connection Type: | Threaded |
| Wiring: | 4-Wire |
| Application: | Hot Water |
| Material: | Steel |
| Max Temp (F): | 248°F |
| Max Differential: | 261 psi |
| Power Consumption: | 20W |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Does the valve come with the blank flange kit listed on the spec sheet, or does this have to be purchased separately?
Asked by Jessica 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffSKU M3P80FY does not include flanges, they must be purchased separately.
