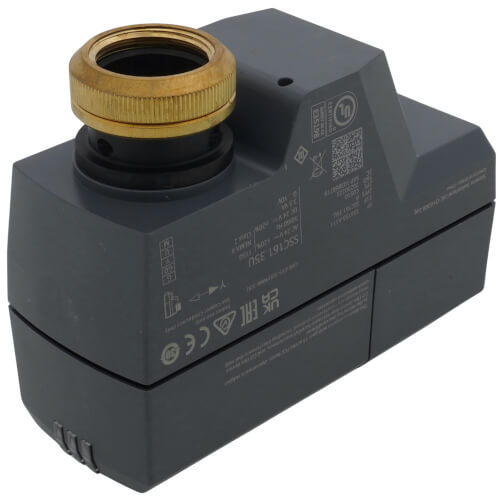

SSC Electronic Spring Return Valve Actuator (24V, 0-10 VDC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$226.40 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: SSC61.35U, SSC61.5U
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Description
–
The Powermite MT Series actuator S55155-A111 works with MT Series valves with 7/32-inch (5.5mm) stroke. This actuator features manual override with LED visual position indication and provides 65 lb. (300 N) nominal force. UL listed for plenum installations.
Features:
Features:
- Actuator Type: Electronic
- Actuation Style: Linear
- Fail Safe: Yes
- Spring return function: Spring return functionality
- Control Signal: 0...10 Vdc
- Positioning time: 27.5s
- Position feedback: Yes
- Power consumption: 3.5 VA
- Ambient temperature, operation: 34 to 122°F
- Ambient humidity, operation: 90% r.h.
- Operating voltage: 24 VAC/DC
- Supply Voltage: 24 VAC/DC
- Frequency: 50/60 Hz
- Dimensions (W x H x D): 5.2 x 3.8 x 1.9 in
- Degree of protection: NEMA2
Specs
–
| Fail Safe Mode: | Spring Return |
|---|---|
| Voltage: | 24V |
| Control Signal: | 0 to 10 VDC |
| Actuator Type: | Proportional |
