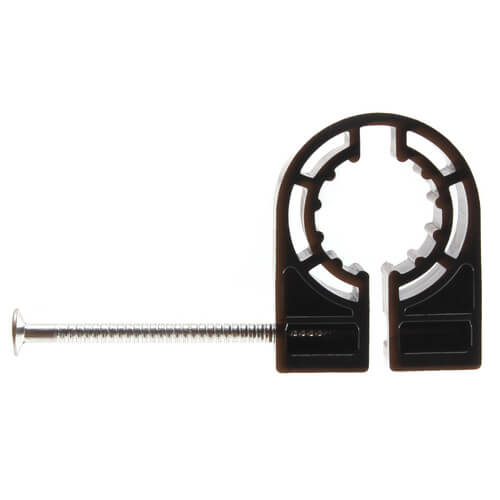

Sioux Chief 551-P series PadLock full clamp pipe hanger shall be used where
necessary to secure 1/2" or 3/4" CTS supply lines in residential or commercial
applications. Clamp shall be 100% corrosion proof and UV resistant. Clamp shall
be impact resistant to 0°F, and be able to withstand continuous temperatures
up to 160°F. Clamp shall include preloaded continuous ring shank nail or drill tip
screw depending on model number. Nails and screws shall be zinc-plated to resist
rust. Clamp shall be designed to protect tube from damage if nail is overdriven and
designed so that there is no way for tube to escape. Hanger shall be compatible
with CTS copper, PEX or CPVC tube.
Features:
- Nail or screw locks tube into hanger so there is no way for tube to escape
- Will not damage tube if nail or screw is over-driven
- Allows tube to expand and contract
- Isolates tube from surface to reduce heat loss and noise transfer
- Fits and fastens to the Grid Iron bracket (see p 465)
- Compatible with copper, PEX and CPVC
