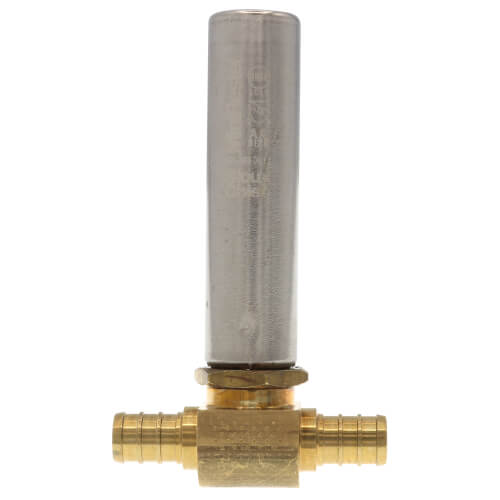

Mini-Rester Water Hammer Arrestor - 1/2" PEX Crimp Tee F1807, Stainless Steel (Lead Free)

Water hammer occurs when the flow of moving water is suddenly stopped by a closing valve. This sudden stop results in a tremendous spike of pressure behind the valve which acts like a tiny explosion inside the pipe. This pressure spike reverberates throughout the plumbing system, rattling and shaking pipes, until it is absorbed. Normally, a sufficient pocket of air will absorb such a pressure spike, but if no pocket of air is present, expensive fixtures and appliances within the plumbing system will be damaged as they are left to absorb this pressure spike.

• Great for in-line PEX installation for quick closing faucets
• All Mini-Resters are AA size
• All Mini-Resters are approved for sealed wall installations with no access panel required
• May be installed at any angle

Materials:

• Arrester body: type L SS tube
• Piston: poly piston with two EPDM o-rings
• Male thread fitting: no-lead brass MIP thread
• Piston lubrication: Dow-Corning, 111 FDA approved silicone compound

*PEX and CPVC connection specifications are limited to those called out in their respective ASTM Standards for Fittings (CPVC D2846, PEX F1807).
