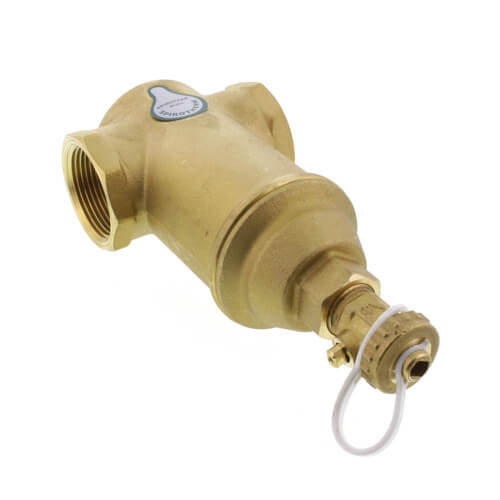

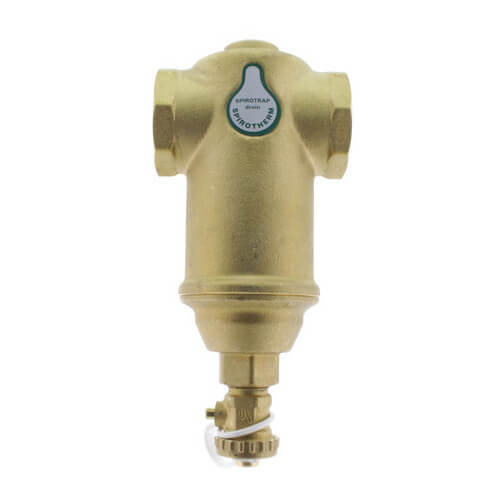

1-1/4" Spirotrap Drain Brass Dirt Separator with removable head (Female Thread)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Body Type: Brass
Connection Type: Threaded
Specs
| Max Pressure (PSI): | 150 |
|---|---|
| Product Type: | Dirt Eliminator |
| Size: | 1-1/4" |
| Material: | Brass |
| Application: | Heating |
| Max Temp (F): | 270°F |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Type: | Non-Magnetic |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
Don't let dirt wear you down.
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not sure if I would buy again
Anyone with a hydronic boiler should consider this
Not sure if I would buy again
Great product
Don't let dirt wear you down.
This should be a must for your hydronic boiler
Great product!
Dirt Separator is perfect solution
Easy Install
Quality, Effective Product
Dirt Filter
Product Q&A

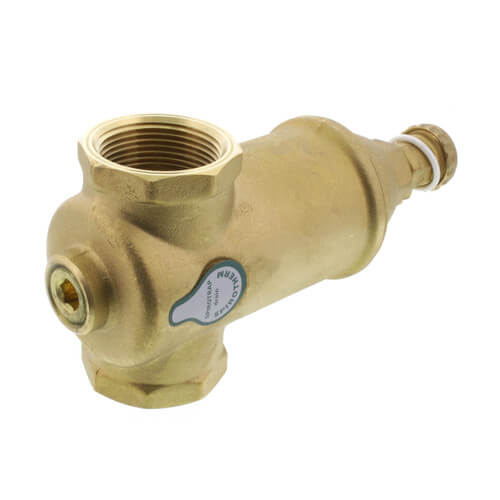

4 QuestionsQ: Photos show a top plugged port. The brochure and specs do not show it or have info. is there a plug in the top of this unit and what size thread is it?
Asked by Modbuilder 10 years ago
Add your answer
THE PLUG IS FOR MFG ASSEMBLY. YOU DO NOT DO ANYTHING WITH IT. YOU PIPE IN AND PIPE OUT THROUGH TAPPINGS AND FLUSH DIRT AND RUST THROUGH BOTTOM PORT.
There is a top plugged port, but it is not meant to be disassembled. I don't know what size the threads are, that port is presumably how the device was put together. In order to function effectively, the flow needs to be side to side.
Q: Is there a way to connect a hose to the drain thread so it does not leak? I have tried 4 different garden hose connectors. No problem to attach, but all leak under pressure. Maybe there's a suitable adapter or a hack?
Asked by Sergey 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffnot that i know of.
Do not see why you need a hose. Blowing off a quart of water in a pail will flush the trap. You only need to do this once a year, at the beginning of heating season.

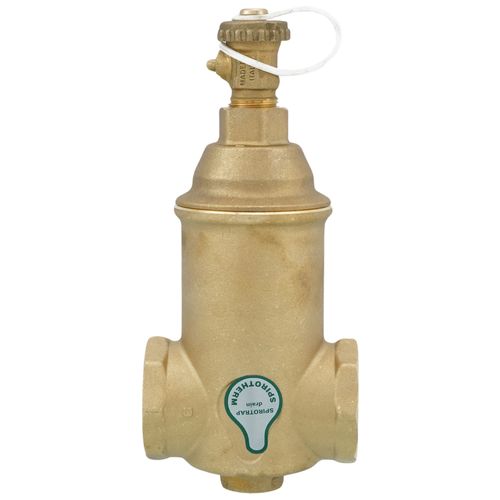

Q: What direction is right side up, I assume it is upside down in the picture, and the decal is right side up, the included instructions are of course very poor and do not indicate, any input is greatly appreciated.
Asked by Spray foam 12 years ago
Add your answer
It must be mounted with the cap and chain at the bottom in order to drain.
The main body with the drain tap should be facing straight down when piped up. This will allow the separator to collect the debris and enable you to flush it out if needed. Sent from my iPhone
Indeed - it is upside down in the picture. The unit hangs down from the piping with the decal right side up.
If you look at the photos on the spirotherm web site, they are correct. http://www.spirotherm.com/products/dirt-separation The brochure http://www.spirotherm.com/sites/default/files/JR-2.pdf shows them correctly. The air separator goes up, and on the dirt separator, it goes down, with the drain on the downside.
Q: Is it brass or steel? One place says steel and heading says brass.
Asked by Rog 14 years ago
Add your answer
The Spirotrap is brass. Quoting PexSupply Team :
Casing is brass. I did not take mine apart so I cannot say for certain if there is a steel screen or strainer inside but if there is I would imagine it would be stainless to resist corrosion caused by boiler water.
IT'S BRASS OR ZINC ITS NOT STEEL, I HAVE ONE
Brass Sent from my iPad
F.W.I.W. - Mine is brass but I believe it may have a stainless steel mesh inside. The one pictured looks the same. I’m sure the housing is NOT steel.
Brass
The 1" spirotrap I purchased is definitely brass.
Brass body with a steel insert to scrub water Sent from my iPhone
This item is primarily brass (the main body, threads, etc) the actual mechanism that traps the dirt is a stainless steel mesh cylinder inside. There is no mild steel on this item.
