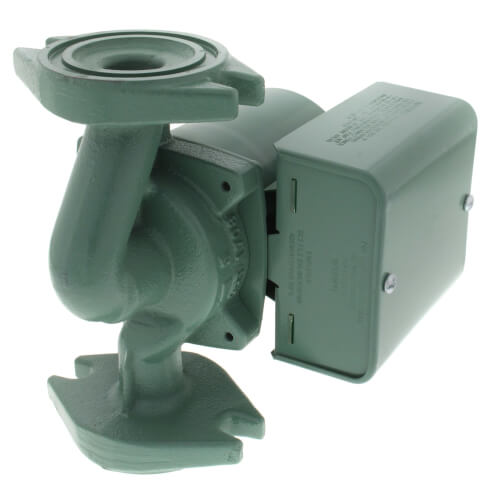

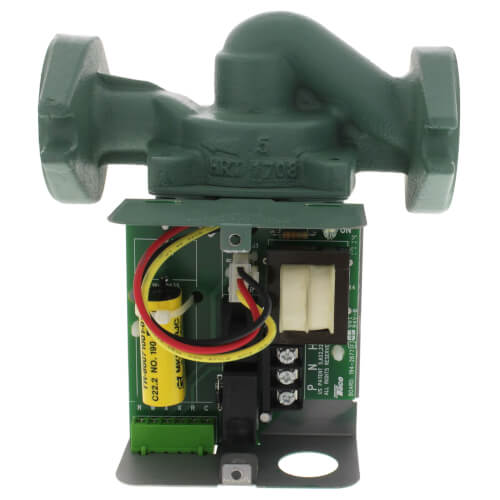

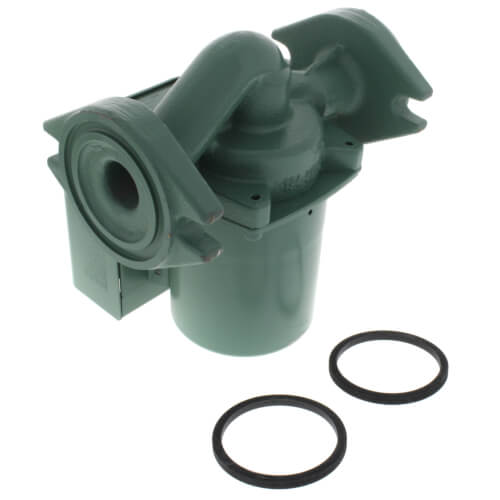

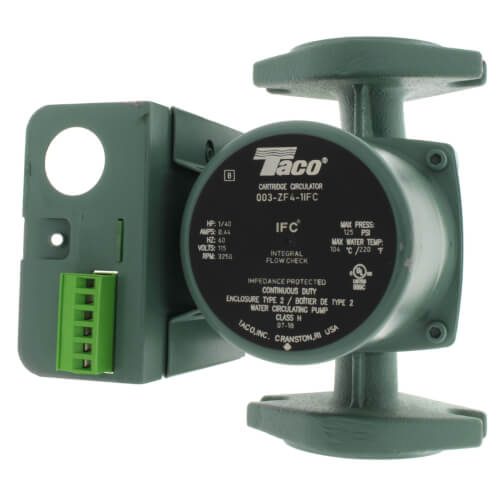

Main product image of 003 Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/40 HP

Hover image to zoom

003 Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/40 HP

Name: 003 Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/40 HP
Brand: Taco
SKU: 003-ZF4-1IFC
Price: 366.88 USD
Availability: OutOfStock

Brand:

Taco

SKU:

003-ZF4-1IFC

Rating:

(0)

Q&A:

(0)

003 Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/40 HP

Hover image to zoom

003-ZF4-1IFC has been discontinued

Discontinued August 8, 2024

This product was discontinued by the manufacturer.

MANUALS (5)

Replacement Parts List

Replacement Parts List

Replacement Parts

View All

Product Highlights

–

115V

1/40 HP

Flanged x Flanged Connection

6 MAX GPM

125 MAX PSI

Cast Iron

Description

–

Features

Universal Thermostat Compatibility, Thermostat Ready
Can be used in conjunction with other circulators or zone valves
Available in a full range of sizes from 003-0014
00 Reliability
Snap-In PC Board
Low and High Voltage Strips
Removable low-voltage terminal strip simplifies wiring installation
LED Power Light
UL and CSA Listed
100% Factory Tested
Made in USA

Typical Applications

Indirect Hot Water Heaters
Adding Zones
Zoning with Circulators
Prioritizing Under-Sized Zones

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 003-001RP
Valve Assembly Trans/Relay: 006-047RP

Specs

–

Material:	Cast Iron
Application:	Heating
Voltage:	115V
Max Pressure (PSI):	125
Type:	Pump
Horse Power:	1/40
Flow Range (GPM):	0-6
Max Flow (GPM):	6
Max Head (Ft):	4.5
Head Range (ft.):	0-4.5
Hertz:	60
Phase:	1
RPM:	3250
Temperature Range (F):	40°F to 230°F
Connection Size:	3/4" 1" 1-1/4" 1-1/2"
Connection Type:	Flanged x Flanged
