Description

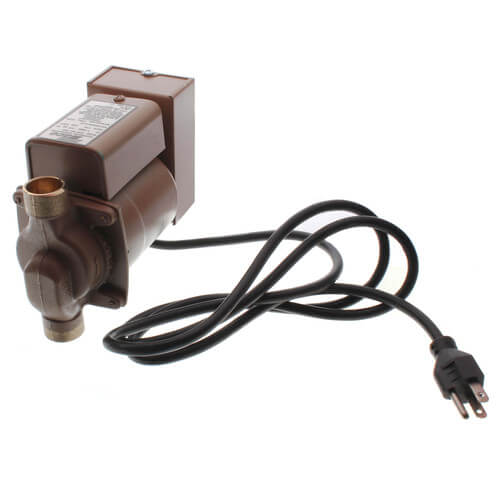

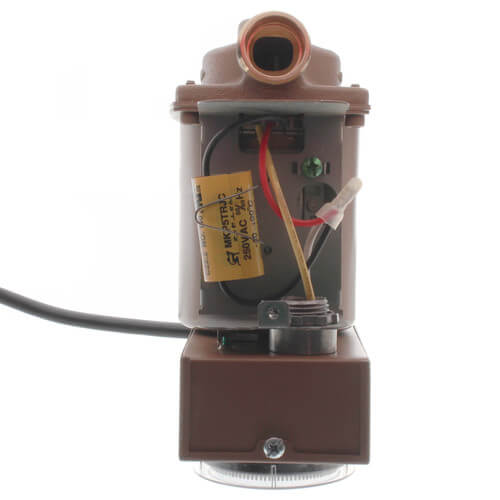

The Plumb N' Plug line of Taco circulators provides an ingenious solution to the problem of waiting for hot water from fixtures. An included timer allows you to quickly and easily designate recirculation periods for instant hot water. The analog timer is prewired, which means installation is a breeze. Setting recirculation times is equally easy; simply flip the switches on the timer face corresponding to the times when you are most likely to need hot water and the Plumb N' Plug will begin recirculation at those times. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP

Features:
  • Factory Installed 6' Line Cord
  • UL Listed
  • Standard High Capacity Output
  • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive-Low Power Consumption
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Self-Lubricating
  • No Mechanical Seal
  • Unmatched Reliability-Maintenance Free
  • Bronze Construction
  • Analog Timer


Application:

For recirculation systems setup for constant circulation or with an optional aquastat control, use Plumb n' Plug with line cord only.
Hide Description
Specs
Product Type:

Recirculator Pump

Material:

Bronze

Horse Power:

1/40

RPM:

3250

Voltage:

115v

Hertz:

60

Phase:

1

Amperage:

0.52

Max Pressure (PSI):

125

Temperature Range (F):

40°F - 220°F

Flow Range (GPM):

0-11.5

Max Flow (GPM):

11.5

Head Range (ft.):

0-9.5

Max Head (Ft):

9.5

Connection Size:

3/4"

Connection Type:

Sweat

Weight (lbs):

7 lbs

×
