Description

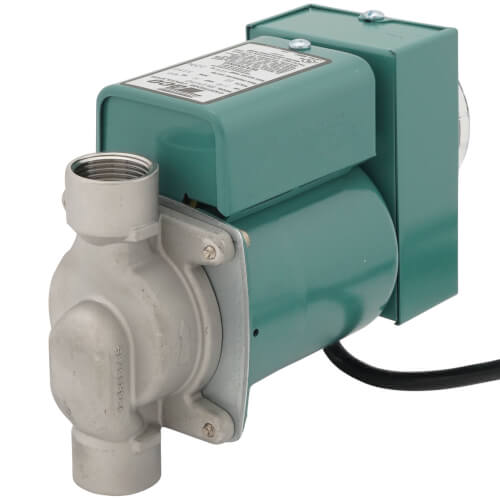

NOTE: Image representative of bronze model of product

Overview

The 003 and 006 Plumb n' Plug® Cartridge Circulators are designed to conserve water, increase comfort and reduce the delivery time of hot water to outlet fixtures by periodically re-circulating hot water through the system. An average residence can save up to 25 gallons of wasted water per day. Factory pre-wired 6 foot line cord with optional 24 hour analog or 7 day digital programmable clock timers allow for easy installation. Simply Plumb it in, then Plug it in. Plumb n' Plug® circulators include all the standard 00® maintenance-free design features-no mechanical seal, self lubricating, replaceable cartridge, quiet, efficient operation and unmatched reliability

The Taco 006 PNP is designed for systems using 200-400 feet of 3/4" pipe. Installation of isolation valves, pipe insulation and flow checks are recommended.

Features
  • Factory Installed 6' Line Cord and 24 Hour/15 Minute Interval Analog Timer
  • UL Listed
  • Quiet, Efficient Operation
  • Direct Drive-Low Power Consumption
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Self Lubricating
  • No Mechanical Seal
  • Unmatched Reliability-Maintenance Free


Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Hide Description
Specs
Application:

Heating

Material:

Stainless Steel

Horse Power:

1/40

Voltage:

115v

Phase:

1

Hertz:

60

RPM:

3250

Connection Type:

NPT

Connection Size:

3/4"

Type:

Pump

Max Flow (GPM):

10

Flow Range (GPM):

0-10

Head Range (ft.):

0-9

Max Head (Ft):

9

Max Pressure (PSI):

125

Type:

Dedicated

Amperage:

0.52

Temperature Range (F):

40°F to 230°F

Warranty:

3 Year

×
