$1,612.50 each
In Stock
Get 2 Wed, Jun 24
Order by today, receive Wednesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/8 HP
1 Year Warranty
Flanged x Flanged Connection
25 MAX GPM
125 MAX PSI
Description
–

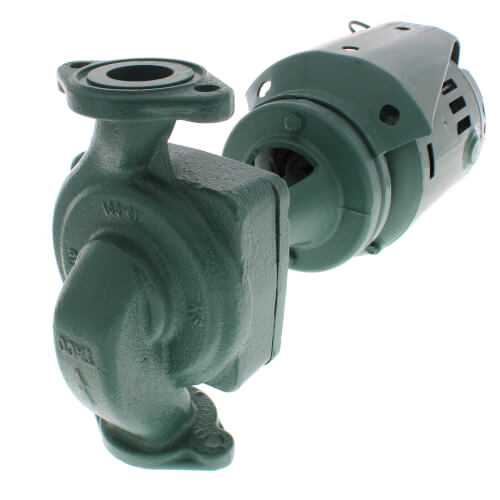

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.
Features:
Features:
- Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
- Factory Tested - Every circulator is operated before shipment
- Easy, Low-Cost Service - No special tools required, nationwide parts availability
Specs
–
| Application: | Heating |
|---|---|
| Material: | Cast Iron |
| Horse Power: | 1/8 |
| RPM: | 1725 |
| Voltage: | 115V |
| Hertz: | 60 |
| Phase: | 1 |
| Max Temp (F): | 240°F |
| Max Pressure (PSI): | 125 |
| Head Range (ft.): | 0-17 |
| Max Head (Ft): | 17 |
| Flow Range (GPM): | 0-25 |
| Max Flow (GPM): | 25 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 1-1/2" 1-1/4" 1" 3/4" |
| Type: | Pump |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Material
Horse Power
Voltage
Hertz
Phase
8 Replacement Parts
Cast Iron Replacement Body for 113 Models
SKU: 113-001RP
TacoTaco Gasket Kit For Models 110-113
SKU: 110-127RP
TacoImpeller & Shaft For Models 113, 113C & 113B
SKU: 113-009RP
TacoMotor Assembly, 1/8 HP
SKU: 110-185RP
TacoTaco Coupling
SKU: 110-009RP
TacoMotor Assembly (Less Motor), 1/8 HP
SKU: 110-008RP
TacoTaco Body Gasket, Models HDH, 111, 113 & 120
SKU: 120-009RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Very Good
Product was great
Frank the Dallas Cowboys Fan
Toano Va
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can the 113 Cast Iron Circulator Pump replace a Taco 113 B4 06-00?
Asked by MV 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, the suggested alternative for the 113-B4 (bronze body) is the 113-4S (stainless steel body) since it can be used in domestic potable water applications. The 113-C4 is made of cast iron and can be used in heating applications only.
