$1,501.58 each
In Stock
Get 2 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
1 Year Warranty
Flanged x Flanged Connection
70 MAX GPM
125 MAX PSI
Description
–

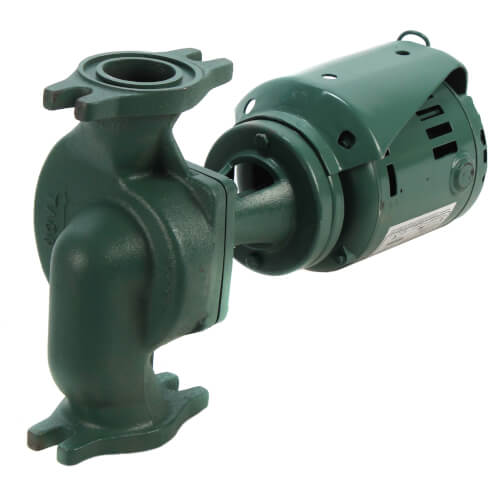

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.
Features:
Features:
- Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
- Factory Tested - Every circulator is operated before shipment
- Easy, Low-Cost Service - No special tools required, nationwide parts availability
Specs
–
| Application: | Heating |
|---|---|
| Material: | Cast Iron |
| Horse Power: | 1/6 |
| RPM: | 1725 |
| Voltage: | 115V |
| Phase: | 1 |
| Hertz: | 60 |
| Max Temp (F): | 240°F |
| Max Pressure (PSI): | 125 |
| Max Head (Ft): | 11.5 |
| Head Range (ft.): | 0-11.5 |
| Flow Range (GPM): | 0-70 |
| Max Flow (GPM): | 70 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 2" |
| Type: | Pump |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Material
Horse Power
Voltage
Phase
Hertz
9 Replacement Parts
Taco Sealer
SKU: 110-275RP
TacoMotor Assembly, 1/6 HP
SKU: 120-105RP
TacoTaco Coupling
SKU: 110-009RP
TacoMotor Assembly (Less Motor), 1/8 HP
SKU: 110-008RP
TacoTaco Gasket Kit, For Pump Models 120
SKU: 120-073RP
TacoTaco Body Gasket, Models HDH, 111, 113 & 120
SKU: 120-009RP
TacoTaco Flange Gasket Set for 1600 Series Pumps
SKU: 1600-169RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.2 out of 5 reviews
80% would recommend this product
5 star
80%
4 star
0%
3 star
0%
2 star
0%
1 star
20%
Showing 1-5 of 5 reviews
Pump includes attachment Flanges!!!!!
The listing does not mention it but this pump comes with the needed flanges included so just do not order flanges separately like i did
newyorkgamergate
Iowa
5 months ago
Was this review helpful to you?
Just exactly what we needed, Exact replacement
Great product! Hope this one lasts as long as the last (over 50 years) Made a world of differece on our heat. Thanks!
Kev. H
Pavilion, New York
3 years ago
Verified Buyer
Was this review helpful to you?
Exact fit, perfect replacement
Awesome customer service and super fast shipping!
Will definitely be ordering again in the future!
BigD
Detroit
3 years ago
Verified Buyer
Was this review helpful to you?
Doesn't start
For several years I've had a fair amount of problems with this pump. Used them for hydronic heating and indirect hot water heating. Sometimes, when heat is called for, it doesn't start turning and soon the motor's thermal protection switch opens. When that happens the motor continues to stay overheated and the switch doesn't close. I have to shut off the power and allow the motor to cool. It usually starts after it's cooled down.
Very undependable pump.
I've tried to get guidance from TACO but they are unable to help which is frustrating.
I now use two 0010 cartridge circulators in to replace the 120. It makes for a much smarter choice.
Jim
Illinois
11 years ago
Was this review helpful to you?
I WOULD BUY THIS ITEM AGAIN. WORKS GREAT
WORKS AND FITS AS LISTED.
RG
CHICAGO
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: does this pump have to be oiled or lubricated
Asked by kevin 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it does. Re-oil pump and motor annually with SAE No. 30 oil.
Was this review helpful to you?
Q: Can this pump be used with a variable speed controler?
Asked by Bob 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes it can be used with a variable speed controller.
Was this review helpful to you?
