$2,461.05 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 1400-70B, 2400-70S
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/2 HP
Threaded, Flanged x Flanged Connection
91 MAX GPM
150 MAX PSI
Stainless Steel
Description
–

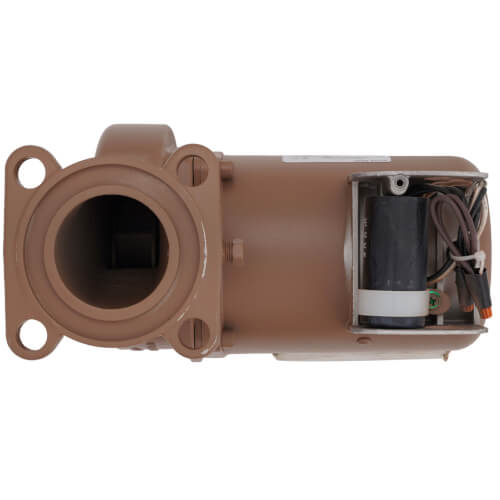

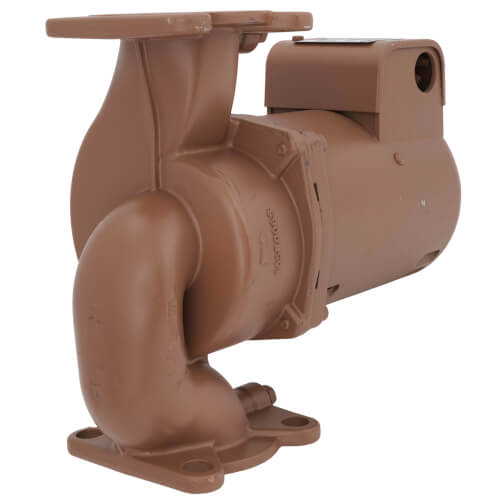

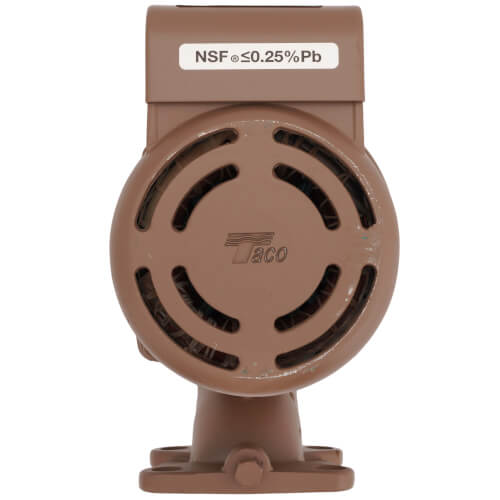

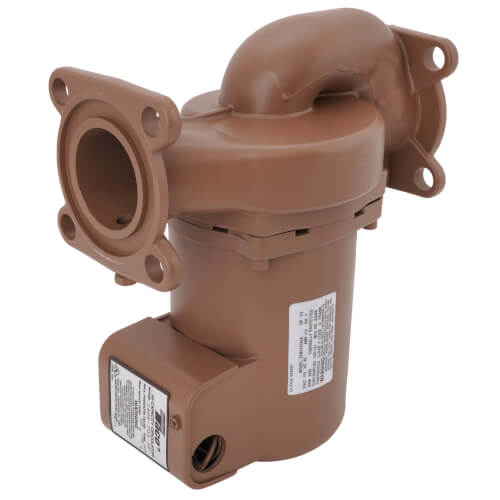

NOTE: Image is shown in Cast Iron.
Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability.
The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
Features:
Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability.
The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
Features:
- Compact, space saving design
- Powerful close-coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged 1/2" Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions - Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
Specs
–
| Material: | Stainless Steel |
|---|---|
| Application: | Heating |
| Voltage: | 115V |
| Amperage: | 4.9 |
| Max Pressure (PSI): | 150 |
| Type: | Pump |
| Horse Power: | 1/2 |
| Connection Size: | 2" |
| Max Flow (GPM): | 91 |
| Max Head (Ft): | 23 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3450 |
| Temperature Range (F): | 40°F - 225°F |
| Connection Type: | Threaded Flanged x Flanged |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Material
Voltage
Max Pressure (PSI)
Type
Horse Power
CURRENT ITEM
Stainless Steel
115V
150
Pump
1/2
5 Replacement Parts
Impeller Kit, 2400-028RP
SKU: 2400-028RP
TacoTaco Replacement Flange Gasket (Pair) for 1400 Models
SKU: 1400-009RP
TacoTaco Seal Kit For 2400 Pumps
SKU: 2400-029RP
TacoTaco Body Gasket Kit
SKU: 1400-018RP
TacoZXM101050A, 1/2 HP Motor for 2400 Series Pumps (115V)
SKU: 2400-007RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
3.67 out of 3 reviews
100% would recommend this product
5 star
33%
4 star
0%
3 star
67%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Yes, I would definitely buy this pump again.
Thank you for getting this pump, it was hard to find it and you guys made it easy. Thumbs Up
Miguel
Washington, DC
12 months ago
Verified Buyer
Was this review helpful to you?
Why do these 2400-70-3P pumps fail so much?
I have had these 2 Lochinvar boilers since 2012 and have replaced the Taco 2400-70-3P pumps about 6 times. In the beginning the plastic Impellers fell apart, but the last 2 pumps just seized up. each of the last 2 seized up within 10 months. I am going to send them back for warranty but would like to know why this continues to happen. Boilers are putting out 182* water, the pump is rated at 225*. They run great in the beginning but begin to get noisy and then Seize up? changes last one on Feb 2018, dead on 12-22-18
any recommendations, since I do not want to change pumps and if I did it would be a complete change in piping, since the space is only big enough for the Original Taco pumps.
Facility Operations Specialist
OR
8 years ago
Was this review helpful to you?
Taco 2400-70
Nice compact pumps. Run rather quietly which is nice if people live near the boiler room. I've installed quite a few of the 2400 series Taco pumps and have had problems with the 2400-30 pump sticking on open systems. When they try to restart they simply don't have enough starting torque to get it going again. I've had some call backs due to this problem. I ended up either installing a wet rotor pump, or leaving the pump running all the time. I've also had a motor fry on a 2400-70. It was only 14 months old. I do like the pumps though.
Eric the boiler guy
Oxnard Ca.
11 years ago
Was this review helpful to you?
