$193.56 each
Backorder
Size:
1/2"
Connection Type:
PEX Crimp x PEX Crimp
Flow Capacity (Cv):
1.8
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Crimp x PEX Crimp Connection
1/2"
1.8 Cv
3-Way
14 MAX GPM
200 MAX PSI
Description
–

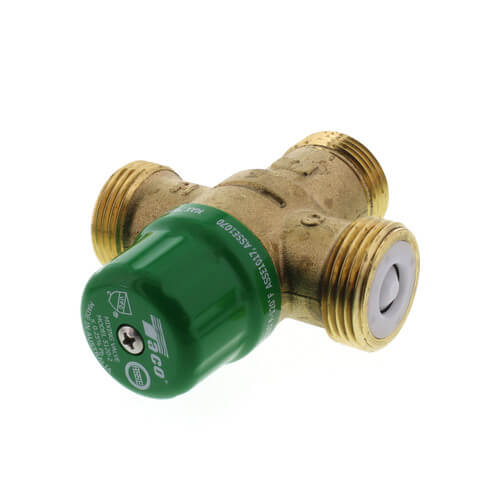

Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5122-P2-G is a brass mixing valve, ideal for a wide range of domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5122-P2-G is capable of handling a supply temperature of up to 180 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve's temperature control may be locked to prevent fluctuations in mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5122-P2-G.
Features:
Includes:
(1) Outlet Temperature Strip
Applications:
Features:
- Lead-Free Compliant (?.25% Lead)
- Suitable For Use in Potable Water
- No Routine Maintenance Required
- Lockable Maximum Temperature Setting
- Outlet Temperature StripAvailable 1/2", 3/4", 1"
- NSF 61 Certified
- High Flow
- Snap on Protective Cover
- No Routine Maintenance Required
Includes:

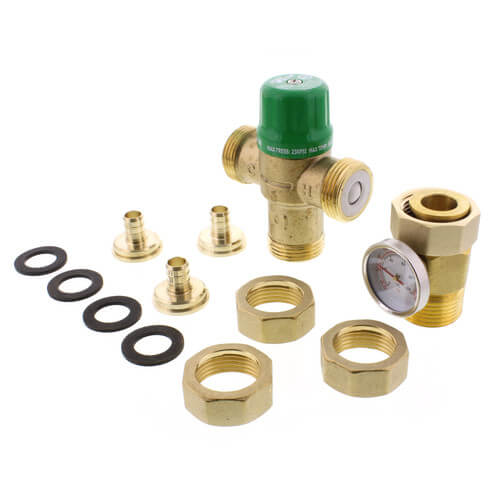

- (1) Taco 5122-P-G Lead Free Mixing Valve
- (1) Temperature Gauge
Applications:
- Domestic Hot Water
- Handled Fixtures
- Handleless Fixtures
- Point of Distribution
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 1/2" |
| Body Pattern: | 3-Way |
| Connection Method: | PEX |
| Max Flow (GPM): | 14 |
| Connection Type: | PEX Crimp x PEX Crimp |
| Max Pressure (PSI): | 200 |
| Flow Capacity (Cv): | 1.8 |
| Standards Met: | ASSE 1070 ASSE 1017 |
| Material: | Forged Brass |
| Application: | Point of Source Point of Use |
| Lead Free: | Yes |
