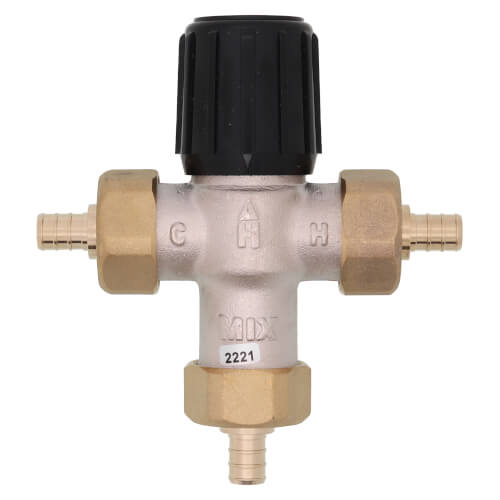

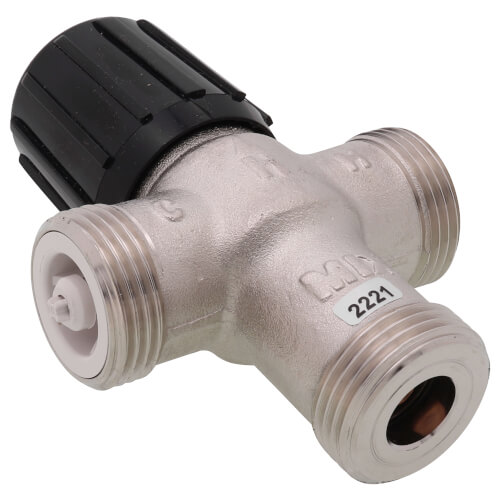

1/2" Union PEX Lead Free Mixing Valve (70-Degree to 120-Degree (F))
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$167.04 each
In Stock
Order by today, receive Monday
Flow Capacity (Cv):
1.8
Size:
1/2"
Connection Type:
PEX Crimp x PEX Crimp
MANUALS (2)
This item replaces: AM100C-UPEX-1LF, AM100C1070-UPEX-1LF, PXMV050
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Crimp x PEX Crimp Connection
1/2"
1.8 Cv
120°F Max Temp
70°F Min Temp
70°F - 120°F
Description
–
Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
Features
- Certified to ASSE 1070 plumbing standards requirements for point-of-use applications
- Color-coded black hand-wheel prevents tampering and is required by the new ASSE 1070 plumbing standards
- Teflon coating resists mineral deposit build-up and extends service life
- ASSE 1070 listed
- Free Thermostrip included to make temperature setting easy for one person to handle
- Lead Free
Product Specifications- Typical Applications: Roman tubs, whirlpools, large showers, sinks and public facilities with lavatories and bidets.
- Includes: Check valves on hot and cold ports
- Comments: Low lead Content <.25% by weighted average
- Operating Temperature Range (F): 70 F to 120 F
- Operating Temperature Range (C): 21 C to 49 C
- Connection Type: Union PEX
- Pipe Size (inch): 1/2"
- Pipe Size (DN): DN15
- Capacity (Cv): 1.8 Cv
- Valve Type: Mixing Valves
- Approvals, ASSE: 1070
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Size: | 1/2" |
| Flow Capacity (Cv): | 1.8 |
| Connection Method: | PEX |
| Connection Type: | PEX Crimp x PEX Crimp |
| Temperature Range (F): | 70°F - 120°F |
| Min Temp (F): | 70°F |
| Type: | Mixing Valve |
| Application: | Point of Source Point of Use |
| Standards Met: | ASSE 1017 ASSE 1070 |
| Lead Free: | Yes |
