$142.11 each
In Stock
Get 2 Tue, Jun 9
Order by today, receive Tuesday
Size:
3/4"
Connection Type:
C x C
Flow Capacity (Cv):
1.8
Features:
Standard
MANUALS (3)
This item replaces: 5123-C1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
3/4"
1.8 Cv
18.5 MAX GPM
3-Way
200 MAX PSI
Description
–

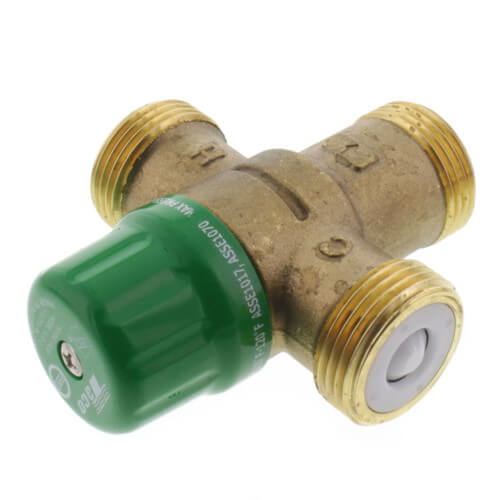

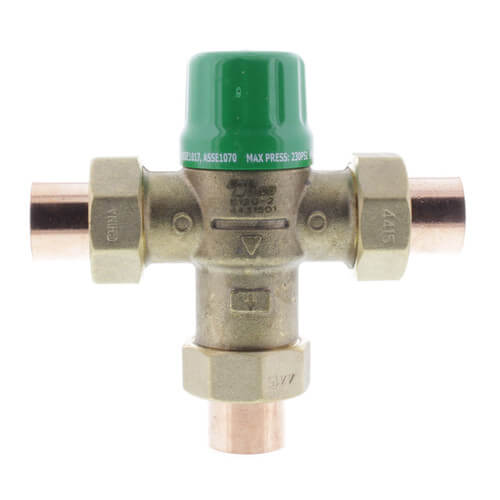

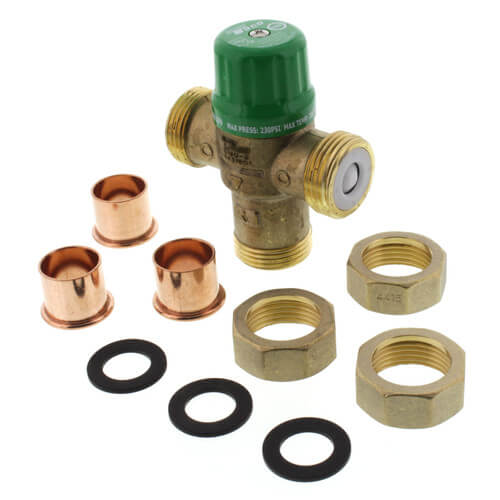

The high flow, low head loss characteristics of the NSF 61 certified 5120 Series mixing valve make it ideal for use in the distribution of water through a domestic hot water system. The valves unique design and advanced thermostatic element ensures a stable mixed water temperature throughout the valves adjustable range.
Features
Features
- NSF 61 Certified
- <.25% Lead
- Suitable for use in Potable Water
- High Flow
- Snap on Protective Cover
- No Routine Maintenance Required
Specs
–
| Features: | Standard |
|---|---|
| Flow Capacity (Cv): | 1.8 |
| Size: | 3/4" |
| Connection Method: | Sweat |
| Max Flow (GPM): | 18.5 |
| Connection Type: | C x C |
| Body Pattern: | 3-Way |
| Max Pressure (PSI): | 200 |
| Material: | Forged Brass |
| Standards Met: | NSF 61 ASSE 1070 ASSE 1017 |
| Application: | Point of Source |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Method
Connection Type
Standards Met
Application
CURRENT ITEM
3/4"
Sweat
C x C
NSF 61
ASSE 1070
ASSE 1017
ASSE 1070
ASSE 1017
Point of Source
Product Reviews
4.8 out of 5 reviews
100% would recommend this product
5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Great product
The valves I am replacing lasted 15 years.
New units are slightly larger (1/4" wider)
NedCO
Denver
4 months ago
Verified Buyer
Was this review helpful to you?
Fits great. Works better than the original.
Wotks fine.
LH
Maryland
9 years ago
Verified Buyer
Was this review helpful to you?
Good prod.
Easy to use...works great...
Pinky
Ny.ny.
9 years ago
Verified Buyer
Was this review helpful to you?
Big flow and easy to adjust!
I used this as a mixing valve on my indirect hot water tank. I keep the tank above 140* to kill off any bacteria, but dont want the danger of water that hot at the faucet. With this valve I mix it down to around 125*, hot enough for a dishwasher, but not hot enough to instantly scald someone by accident. I chose this model due to its higher flow rating than most other mixing valves. If filling a tub while doing laundry or washing dishes is a possibility in your house you dont want a mixing valve restricting the flow. This high flow model will flow enough proper temperature water to supply several faucets or appliances at the same time without restricting total flow. The unions make the install or replacent easy. Quick and easy to adjust, and the instructions are spot on.
MM on LI
Melville NY
12 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
easy to install
The valve is installed, but not in use yet.
joeabby
Washington, Ct
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can this value be used on a boiler...max temp 180*.... Needed to raise return water temp.......thanks
Asked by Larry 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it can.
