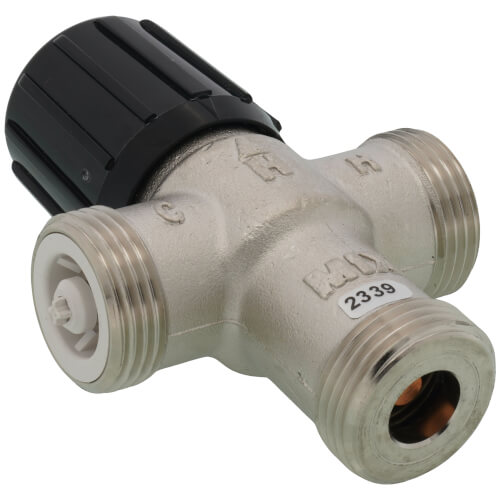

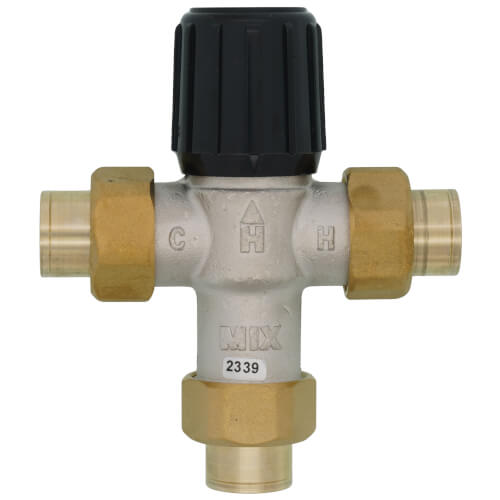

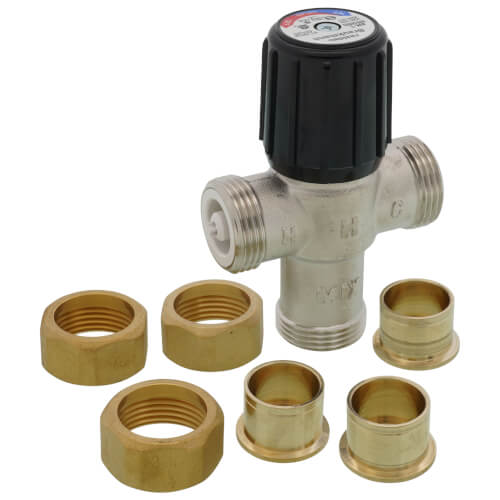

3/4" Union Sweat 1070 Mixing Valve (Lead Free)
Hover image to zoom
3/4" Union Sweat 1070 Mixing Valve (Lead Free)
Hover image to zoom
$143.59 each
In Stock
In Stock
Get 43 Mon, Apr 29
More Available
Fast Track Logo
Order by 6PM, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Type icon
C x C Connection
Size icon
3/4"
Flow Capacity (Cv) icon
1.8 Cv
Max Temp (F) icon
120°F Max Temp
Min Temp (F) icon
70°F Min Temp
Temperature Range (F) icon
70°F - 120°F

Description

The Honeywell AM-1 Lead Free accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.

Features:
  • Dual purpose mixing or diverting valves
  • Constant water temperature under changing operating conditions
  • Reliable performance at minimum flow of 0.5 GPM
  • Proportional valve (simultaneous control of hot and cold water)
  • Temperature limit at any point
  • Flow reduction in seconds if cold water supply is interrupted
  • Nickel-plated brass construction, EPDM O-rings
  • High performance thermoplastic proportioning shuttle
  • Straight through design (hot and cold at the same level)
  • Max. pressure 150 PSI
  • Max temperature 212F
  • Designed for easy maintenance and element replacement. Teflon coating of internal valve components to prevent mineral build-up and extend life.
  • Tamper resistent design
  • Valve trapping not required
  • AM-1 Union STD & C and AM1070 Models include check valves on both hot and cold ports
  • ASSE, CSA and IAPMO listed
  • U.S. Patent No. 6,079,625

Specs

Size:

3/4"

Flow Capacity (Cv):

1.8

Connection Method:

Sweat

Connection Type:

C x C

Type:

Mixing Valve

Min Temp (F):

70°F

Max Temp (F):

120°F

Temperature Range (F):

70°F - 120°F

Lead Free:

Yes

Application:

Point of Source

Point of Use

Standards Met:

ASSE 1070

ASSE 1017
