Wifi Snow Melting Control

Overview

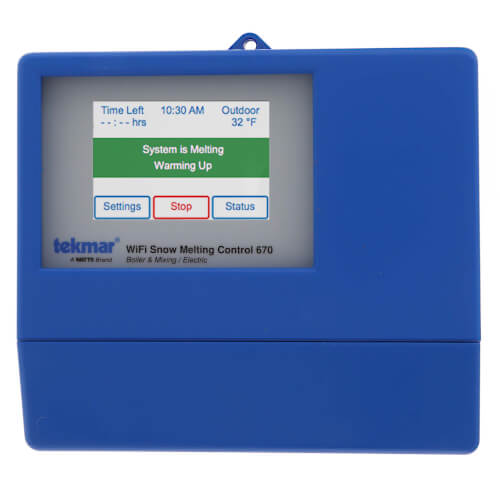

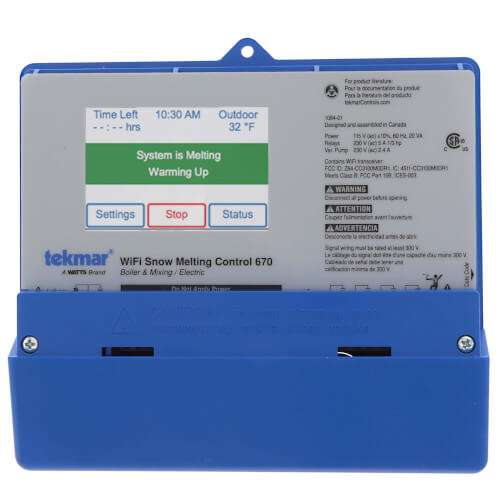

The WiFi Snow Melting Control 670 operates hydronic and electric heating equipment designed to melt snow and/or ice from roads and walkway surfaces. The control works with the tekmar Snow/Ice Sensor 090 or Snow Sensor 095 to automatically detect snow or ice and operates a single boiler, steam valve, or electric cable to supply heat to the slab. Boiler return protection is provided to non-condensing boilers using a mixing valve or variable speed injection mixing pump. The tekmar Connect mobile application allows for remote operation and monitoring of the snow melting system from anywhere in the world.

Features

• Auto Storm
• Automatic snow/ice detection
• Automatic software updates
• Cold Weather Cut Off
• EconoMelt
• Equipment exercising
• Idling
• Mobile app for iOS and Android
• Slab Protection
• Supports both inslab & retrofit aerial sensors
• Supports multiple zones with priority
• Tandem Snow/Ice Detection
• Warm Weather Shut Down

Specifications

• Control: Microprocessor control. This is not a safety (limit) control
• Packaged weight: 4.3 lb. (1960 g)
• Dimensions: 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
• Display: 3.5" color touchscreen

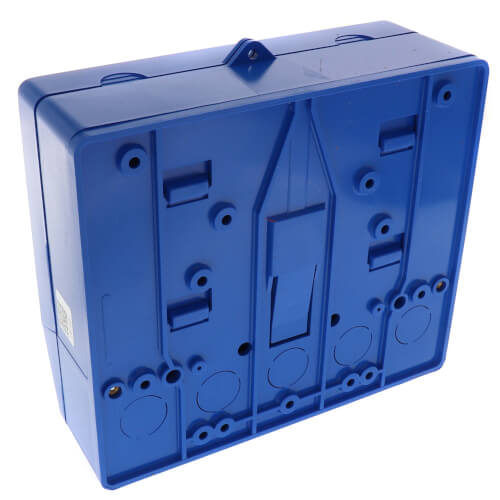

• Enclosure: Blue PVC plastic, NEMA type 1
• Approvals: CSA C US, meets Class B: ICES & FCC Part 15
• Ambient conditions: -4 to 122 F (-20 to 50 C), <90% RH non-condensing, outdoor use permitted when installed inside a NEMA 3 enclosure
• Power supply: 115 V (ac) + or -10%, 60 Hz, 20 VA
• Relays: 230 V (ac), 5 A, 1/3 hp
• Boiler modulation output: 0-10 V (dc) 500 ohms min impedance / 4-20 mA 1 kiloohm max impedance
• Injection mixing output: 230 V (ac), 2.4 A, 1/6 hp, fuse T2.5 A 250V
• Floating mixing output: 230 V (ac), 5 A
• Analog mixing output: 0-10 V (dc) 500 ohms min impedance / 4-20 mA 1 kiloohm max impedance
• Manual melt call: Short or 0 - 32 V(ac)
• Communications: WiFi 802.11n, 2.4 GHz, WPA2 encryption
• Mobile app: Apple iOS, Android
• Sensor: NTC thermistor, 10 kiloohm @ 77 F (25 C + or -0.2 C) ß=3892
• Included: Outdoor Sensor 070 and 2 of Universal Sensor 082
• Optional: tekmar type # 072, 073, 082, 090, 094, 095
• Warranty: Limited 3 Year Warranty
