$211.00 each
In Stock
Get 2 Tomorrow, Jun 9
Order by 6PM, receive Tomorrow
MANUALS (2)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
3/4"
248°F Max Temp
20°F Min Temp
20°F - 248°F
Brass
Description
–

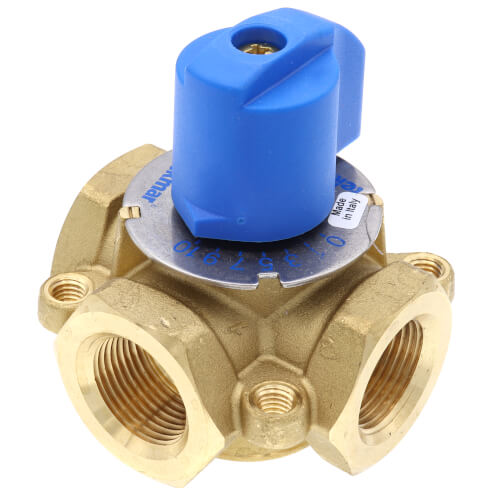

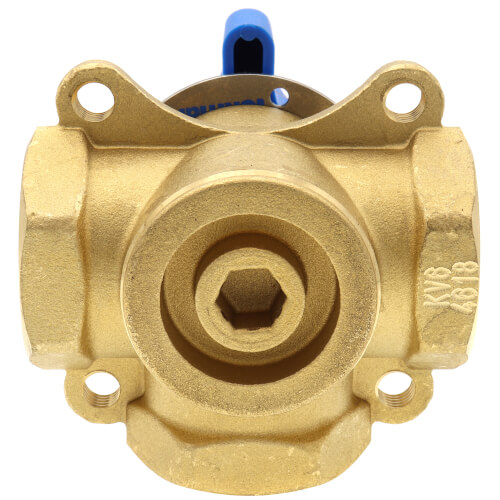

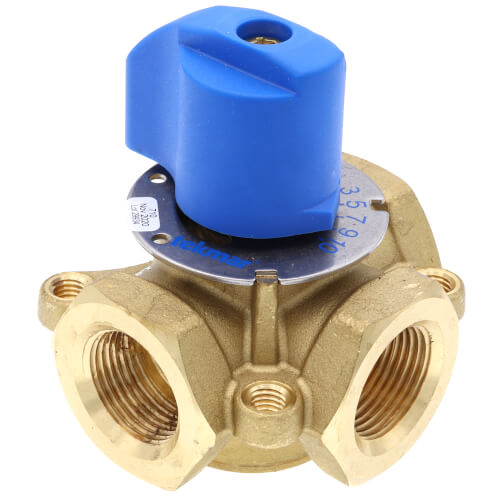

The 3-Way Brass Mixing Valves 710, 711, 712, 713, and 714 are used to mix supply water from a heat source with water returning from a system. They are designed for use in either closed loop or open loop hydronic systems. All valves have standard female NPT threads. The valve provides a maximum leak through rate of 1% to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An Actuating Motor 741 can be used to automatically operate the valve. Literature + D 710 Maximum Operating Pressure + 146 psi (10 bar) Operating Temperature Range + -20 to 248+F (-28 to 120+C) Valve Body and Vane + CW 617N - EN 12165 Brass Shaft Seal + Viton "O" ring Main Seal + EPDM Perioxide "O" ring Acceptable Fluid Media + Chilled and hot water with antifreeze and anticorrosive compounds (max 60%), glycol, ethyl alcohol glycol, propylene dichloride alcohol, mono ethyl alcohol, ethyl methyl alcohol, glycerine. Not for use with media based on mineral oil components or chlorinated pool water.
Specs
–
| Application: | Point of Source Heating |
|---|---|
| Size: | 3/4" |
| Material: | Brass |
| Max Pressure (PSI): | 146 |
| Max Temp (F): | 248°F |
| Min Temp (F): | 20°F |
| Temperature Range (F): | 20°F - 248°F |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Body Pattern: | 3-Way |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
I would buy it again
Great product. Wrong Specs.
Matt
Ithaca
4 years ago
Verified Buyer
Was this review helpful to you?
Like what I recieced
Everything was as expected
Watkins plumbing
Indiana
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
We have used the product in the past. We needed to install the manual valve for the moment but in the end we will be adding an acutator an outdoor reset control to the item.
Paul
Stamford, CT
9 years ago
Verified Buyer
Was this review helpful to you?
Very good
Great product and value.
Its just a tempering device with alot of potential as far as control ability.
I priced another brand which was almost the same but much more money.
Supertech
Northampton pa
10 years ago
Verified Buyer
Was this review helpful to you?
I would continue to use the Tekmar.
This is a high quality full port, three way valve made by Tekmar. The valve can accomodate an actuator, which replaces the knob used for manual mode. Incorporated a marked disk so it is easy to set the valve at the exact seting/dial.
Solar energy
Morton Grove Illlinois
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: What is the max flow rate through this mixing valve?
Asked by Herman 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve has a maximum flow rate of 14 GPM at 1 psi. See the flow chart on page 2 of the following data sheet for more information: http://s3.pexsupply.com/manuals/1297714190527/47573_PROD_FILE.pdf
Was this review helpful to you?
Q: can this unit be manualy adjustable
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it can.
Was this review helpful to you?
Q: Is this valve a modulating forward & Reverse action ?? Is the actuator a 3 wire control ??
Asked by EML 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this valve modulates forward at 24 V and reverse at 24 V. Yes, the actuator has a 3 wire control; 1 for off, 1 for on and 1 common.
Was this review helpful to you?
